DIN PN16 Cast Steel Spring-Loaded Globe Valve
DIN PN16 Cast Steel Spring-Loaded Globe Valve
SKU:VAL-d33d15
Durable DIN PN16 Cast Steel Globe Valve for precise flow control in critical applications.
Regular price
$279.99
Regular price
Sale price
$279.99
Unit price
per
Initiate Order
DIN PN16 Cast Steel Spring-Loaded Globe Valve
$279.99
Quantity: 1
Claim Your Seller Account
DIN PN16 Cast Steel Spring-Loaded Globe Valve
$279.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

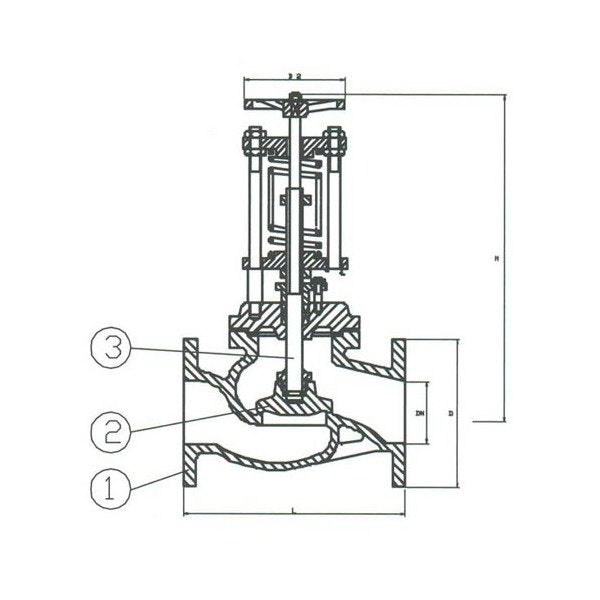

The DIN PN16 Cast Steel Spring-Loaded Globe Valve is engineered for durability and precision. Featuring a Cast Steel Body, Stainless Steel Disc, and Stem, this valve ensures reliable performance in critical applications. With Flanges according to DIN2501-PN16 standard, it offers seamless integration and optimal flow control. The valve is designed for hydraulic inspections with meticulously crafted components, providing a sturdy and efficient solution for fluid control systems.
Product Specifications
Specifications Actuators
Spring
Specifications Body Material
Cast Steel
Specifications Connection
Flanged Drilled
Specifications D
200 mm
Specifications D2
140 mm
Specifications Disc Material
Stainless Steel
Specifications H
475 mm
Specifications Hydraulic Inspection Body
25
Specifications Hydraulic Inspection Seat
16
Specifications L
310 mm
Specifications Seat Material
Brass
Specifications Size
080
Specifications Stem Material
Brass
Specifications Weight
27 kg
