DIN PN16 Cast Steel Spring-Loaded Globe Valve
DIN PN16 Cast Steel Spring-Loaded Globe Valve
SKU:VAL-43c93b
Durable DIN PN16 Cast Steel Globe Valve with spring-loaded actuators for precise flow control. Ideal for industrial applications.
Regular price
$229.99
Regular price
Sale price
$229.99
Unit price
per
Initiate Order
DIN PN16 Cast Steel Spring-Loaded Globe Valve
$229.99
Quantity: 1
Claim Your Seller Account
DIN PN16 Cast Steel Spring-Loaded Globe Valve
$229.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

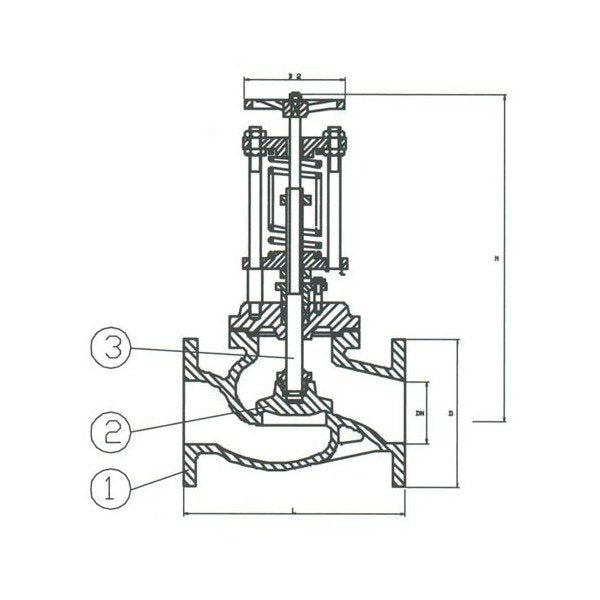

The DIN PN16 Cast Steel Overboard Spring-loaded Globe Valve is a high-quality valve suitable for a wide range of applications. Constructed with a cast steel body and stainless steel components, this valve is durable and corrosion-resistant. The spring actuators ensure precise control over flow rates, while the flanged connection allows for easy installation and maintenance. Meeting DIN2501-PN16 standards, this valve is ideal for industrial and institutional use where reliability and performance are crucial.
Product Specifications
Specifications Actuators
Spring
Specifications Body Material
Cast Steel
Specifications Connection
Flanged Drilled
Specifications D
150 mm
Specifications D2
100 mm
Specifications Disc Material
Stainless Steel
Specifications H
375 mm
Specifications Hydraulic Inspection Body
25
Specifications Hydraulic Inspection Seat
16
Specifications L
200 mm
Specifications Seat Material
Brass
Specifications Size
040
Specifications Stem Material
Brass
Specifications Weight
10.0 kg
