DIN PN16 Cast Steel Swing Check Valve - Size 100
DIN PN16 Cast Steel Swing Check Valve - Size 100
SKU:VAL-b52ee0
Durable DIN PN16 Cast Steel Swing Check Valve - Size 100 for industrial use
Regular price
$349.99
Regular price
Sale price
$349.99
Unit price
per
Initiate Order
DIN PN16 Cast Steel Swing Check Valve - Size 100
$349.99
Quantity: 1
Claim Your Seller Account
DIN PN16 Cast Steel Swing Check Valve - Size 100
$349.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

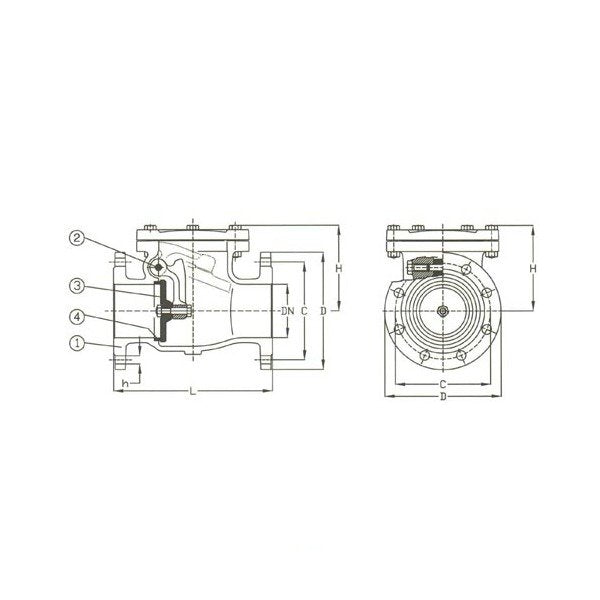

The DIN PN16 Cast Steel Swing Check Valve is constructed with a durable GSC-25N2 cast steel body, stainless steel components for longevity, and precision engineering to meet stringent hydraulic inspection requirements. Its stainless steel hinge, disc, and seat ensure reliable performance and longevity, conforming to DIN standards for face to face and flange dimensions. With a weight of 35 kg and gravity actuators, this valve delivers robust performance ideal for industrial applications.
Product Specifications
Specifications Actuators
Gravity
Specifications Body Material
Cast Steel
Specifications C
180 mm
Specifications Connection
Flanged Drilled
Specifications D
220 mm
Specifications Disc Material
Stainless Steel
Specifications H
160 mm
Specifications Hydraulic Inspection Body
24
Specifications Hydraulic Inspection Seat
16
Specifications Impaissa Code
753589 | 755955
Specifications L
300 mm
Specifications Number Of Holes
8
Specifications Seat Material
Stainless Steel
Specifications Size
100
Specifications Stem Material
Stainless Steel
Specifications T
20 in
Specifications Weight
35 kg
