DIN PN16 Ductile Iron Angle Valve
DIN PN16 Ductile Iron Angle Valve
SKU:VAL-223d49
Durable DIN PN16 Ductile Iron Angle Valve for industrial fluid control. Stainless Steel components, precise dimensions, and flanged connections for reliable performance.
Regular price
$119.99
Regular price
Sale price
$119.99
Unit price
per
Initiate Order
DIN PN16 Ductile Iron Angle Valve
$119.99
Quantity: 1
Claim Your Seller Account
DIN PN16 Ductile Iron Angle Valve
$119.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The DIN PN16 Ductile Iron Angle Valve is a reliable solution for fluid control applications in industrial settings. Constructed with a durable Ductile Iron body and Stainless Steel components, including the seat, disc, and stem, this valve ensures longevity and resistance to corrosion. With precise dimensions meeting DIN standards, a handwheel actuator for manual operation, and flanged connections, this valve offers easy installation and efficient performance.

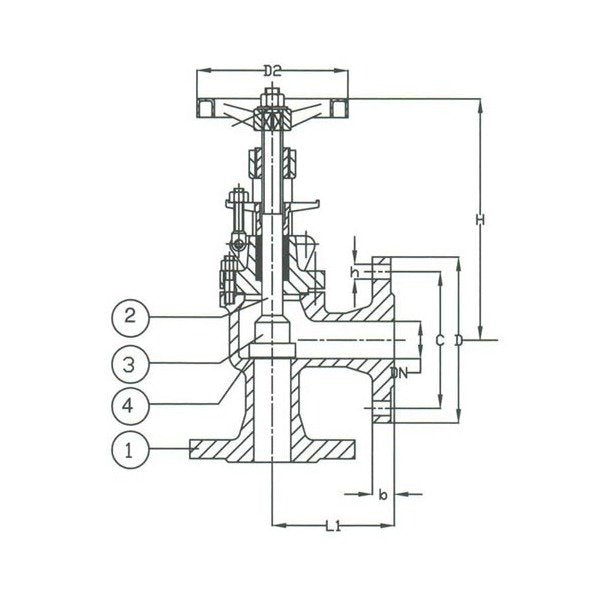

Product Specifications
Specifications Actuators
Handwheel
Specifications Body Material
Ductile Iron
Specifications C
100 mm
Specifications Connection
Flanged Drilled
Specifications D
140 mm
Specifications D2
125 mm
Specifications Disc Material
Stainless Steel
Specifications H
170 mm
Specifications Hydraulic Inspection Body
25
Specifications Hydraulic Inspection Seat
16
Specifications L1
105.0 mm
Specifications Number Of Holes
4
Specifications Seat Material
Stainless Steel
Specifications Size
032
Specifications Stem Material
Stainless Steel
Specifications T
16 mm
Specifications Weight
6.60 kg
