DIN PN16 Full Bore Ball Valve with Cast Iron Body

Name: DIN PN16 Full Bore Ball Valve with Cast Iron Body
Brand: World Wide Metric, Inc.
SKU: VAL-af1ead
Price: 89.99 USD
Availability: OutOfStock

SKU:VAL-af1ead

Reliable DIN PN16 Full Bore Ball Valve with Cast Iron Body, suitable for industrial applications.

$89.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The DIN PN16 Full Bore Ball Valve with Cast Iron Body is a reliable and durable valve suitable for various industrial applications. Featuring a GG252 cast iron body, brass ball, and Teflon or Stainless Steel seat, this valve ensures long-lasting performance. Designed as per DIN standards, with face to face dimensions according to DIN 3202-F4/5 and flanges complying with DIN2501-PN16, it guarantees compatibility in institutional environments. The synthetic material seat, brass stem, and lever actuators further enhance its functionality and ease of operation.

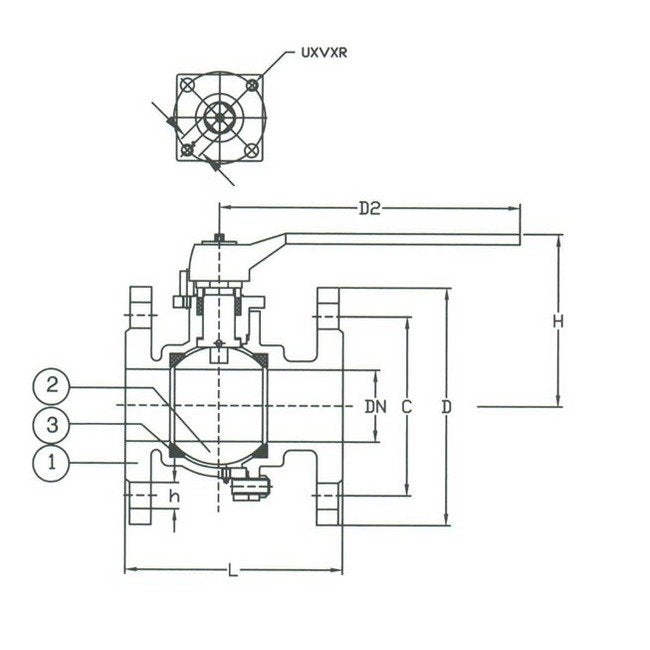

Product Specifications

Specifications Actuators

Lever

Specifications Body Material

Cast Iron

Specifications C

65 mm

Specifications D

95 mm

Specifications D2

130 mm

Specifications H

60 mm

Specifications Hydraulic Inspection Body

Specifications Hydraulic Inspection Seat

Specifications L

115 mm

Specifications Number Of Holes

Specifications Seat Material

Synthetic Material

Specifications Size

015

Specifications Stem Material

Brass

Specifications T

14 mm

Specifications Weight

2 kg

DIN PN16 Full Bore Ball Valve with Cast Iron Body
