DIN PN16 Full Lug Valves, Series 52 - 300-12"
DIN PN16 Full Lug Valves, Series 52 - 300-12"
SKU:VAL-bef54b
Series 52 Full Lug Valves DIN PN16 - Reliable, Durable, and Precise. Available in Size Range: 300-12". Constructed with high-quality materials for industrial applications.
Regular price
$789.99
Regular price
Sale price
$789.99
Unit price
per
Initiate Order
DIN PN16 Full Lug Valves, Series 52 - 300-12"
$789.99
Quantity: 1
Claim Your Seller Account
DIN PN16 Full Lug Valves, Series 52 - 300-12"
$789.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Series 52 Full Lug Valves DIN PN16 deliver superior performance and durability for industrial applications. Featuring a Size Range of 300 to 12", these valves are constructed with high-quality materials including Bronze, Carbon Steel, Cast Iron, Ductile Iron, and Stainless Steel. The Disc is available in Aluminum Bronze, Ductile Iron, and Stainless Steel while the Stem is crafted from Stainless Steel for maximum strength. With Seat Material options of EPDM, NBR, Teflon, and Viton, and Packaging choices of NBR, EPDM, and Viton, these valves offer exceptional reliability and longevity.
Product Specifications
Specifications Available Disc Material
Aluminum Bronze | Ductile Iron | Stainless Steel
Specifications Available Packing Material
EPDM | NBR | Viton
Specifications Available Seat Material
EPDM | NBR | Teflon | Viton
Specifications Available Stem Material
Stainless Steel
Specifications Body Material
Bronze | Carbon Steel | Cast Iron | Ductile Iron | Stainless Steel

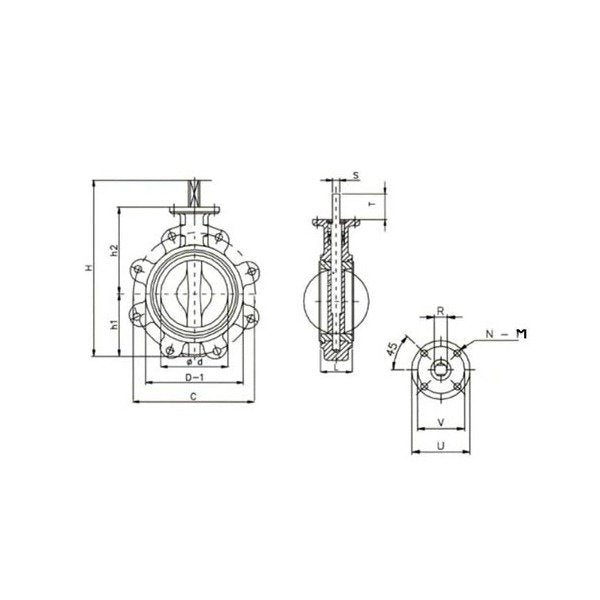

Specifications C
410 mm
Specifications D
298 mm
Specifications D 1
374 mm
Specifications H
538 mm
Specifications H1
249 mm
Specifications H2
295 mm
Specifications Hole Diameter
26 mm
Specifications L
78 mm
Specifications Number Of Holes
12
Specifications Size
300 - 12"
Specifications Standard
DIN
Specifications Stem R
28 mm
Specifications Stem S
20 mm
Specifications Top Flange To Iso 5211 M Diameter
12 mm
Specifications Top Flange To Iso 5211 N Number Of Tap Holes
4
Specifications Top Flange To Iso 5211 U
125 mm
Specifications Top Flange To Iso 5211 V
102 mm
Specifications Weight
44 kg
