DIN PN16 Mono Flanged Butterfly Valve for Institutional Use
DIN PN16 Mono Flanged Butterfly Valve for Institutional Use
SKU:VAL-c09a6b
Series 56 Mono Flanged Valves DIN PN16 - Reliable, Durable, and DIN Compliant. Sizes: 2" to 32". Various Materials Available.
Regular price
$899.99
Regular price
Sale price
$899.99
Unit price
per
Initiate Order
DIN PN16 Mono Flanged Butterfly Valve for Institutional Use
$899.99
Quantity: 1
Claim Your Seller Account
DIN PN16 Mono Flanged Butterfly Valve for Institutional Use
$899.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Series 56 Mono Flanged Valves DIN PN16 offer a robust solution for institutional and government applications. Built to meet ISO 5752 S16 standards, these valves come in sizes ranging from 2" to 32". With body materials including Cast Iron, Ductile Iron, Carbon Steel, Stainless Steel, and Bronze, these valves ensure durability and longevity. The disc, stem, and seat materials offer a wide range of options like Ductile Iron, Stainless Steel, Aluminum Bronze, EPDM, NBR, Viton, and Teflon, catering to various operational needs. The 20-bolt double flanged connection provides a secure fit, while complying with DIN and ISO 5211 standards.
Product Specifications
Specifications Available Disc Material
Aluminum Bronze | Ductile Iron | Stainless Steel
Specifications Available Packing Material
EPDM | NBR | Viton
Specifications Available Seat Material
EPDM | NBR | Teflon | Viton
Specifications Available Stem Material
Stainless Steel
Specifications Body Material
Bronze | Carbon Steel | Cast Iron | Ductile Iron | Stainless Steel

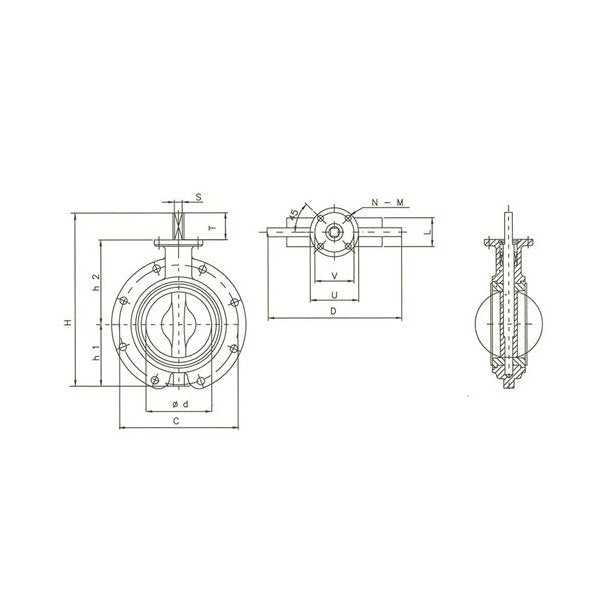

Specifications Bolt Diameter
30 mm
Specifications C
585 mm
Specifications Connection
Double Flanged
Specifications D
640 mm
Specifications D 1
615 mm
Specifications H
111 mm
Specifications H1
334 mm
Specifications H2
388 mm
Specifications L
152 mm
Specifications Number Of Bolts
20
Specifications Pressure
PN 16
Specifications Size
450 - 18"
Specifications Standard
DIN
Specifications Stem S
30 mm
Specifications Stem T
50 mm
Specifications Top Flange To Iso 5211 M Diameter
17 mm
Specifications Top Flange To Iso 5211 N Number Of Tap Holes
4 mm
Specifications Top Flange To Iso 5211 U
175 mm
Specifications Top Flange To Iso 5211 V
140 mm
Specifications Weight
115.0 kg
