DIN PN16 Mono Flanged Butterfly Valve - Series 56
DIN PN16 Mono Flanged Butterfly Valve - Series 56
SKU:VAL-b0b095
Premium Series 56 Mono Flanged Valves with DIN PN16 rating for reliable performance in diverse applications.
Regular price
$549.99
Regular price
Sale price
$549.99
Unit price
per
Initiate Order
DIN PN16 Mono Flanged Butterfly Valve - Series 56
$549.99
Quantity: 1
Claim Your Seller Account
DIN PN16 Mono Flanged Butterfly Valve - Series 56
$549.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Series 56 Mono Flanged Valves with DIN PN16 rating are engineered for precision and durability. Available in sizes from 50A to 800A, these valves feature a variety of body materials including Cast Iron, Ductile Iron, Carbon Steel, Stainless Steel, and Bronze, ensuring compatibility with diverse applications. The discs, stems, and seats are crafted from high-quality materials like Ductile Iron, Stainless Steel, Aluminum Bronze, EPDM, NBR, Viton, and Teflon, providing reliable performance and chemical resistance. With compliance to ISO 5752 S16 and DIN standards, these valves offer exceptional efficiency and longevity, making them ideal for both consumer and institutional use.

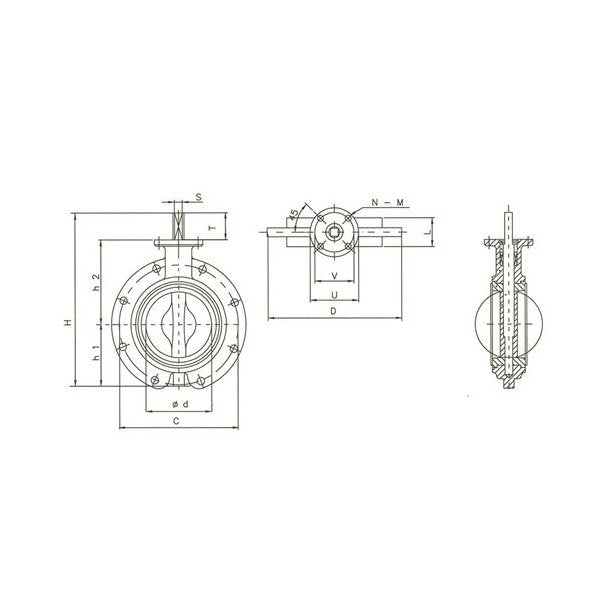

Product Specifications
Specifications Available Disc Material
Aluminum Bronze | Ductile Iron | Stainless Steel
Specifications Available Packing Material
EPDM | NBR | Viton
Specifications Available Seat Material
EPDM | NBR | Teflon | Viton
Specifications Available Stem Material
Stainless Steel
Specifications Body Material
Bronze | Carbon Steel | Cast Iron | Ductile Iron | Stainless Steel
Specifications Bolt Diameter
22 mm
Specifications C
240 mm
Specifications Connection
Double Flanged
Specifications D
285 mm
Specifications D 1
285 mm
Specifications H
347 mm
Specifications H1
133 mm
Specifications H2
180 mm
Specifications L
76 mm
Specifications Number Of Bolts
8
Specifications Pressure
PN 16
Specifications Size
150 - 6"
Specifications Standard
DIN
Specifications Stem S
16 mm
Specifications Stem T
34 mm
Specifications Top Flange To Iso 5211 M Diameter
9 mm
Specifications Top Flange To Iso 5211 N Number Of Tap Holes
4 mm
Specifications Top Flange To Iso 5211 U
90 mm
Specifications Top Flange To Iso 5211 V
70 mm
Specifications Weight
14.0 kg
