The Series 56 Mono Flanged Valve, designed to ISO 5752 standards, offers a versatile solution for fluid control. Available in sizes ranging from 50A to 800A, with body options in Cast Iron, Ductile Iron, Carbon Steel, Stainless Steel, and Bronze for enhanced durability. The valve features a variety of disc, stem, seat, and packing materials to suit different applications, ensuring reliable performance and fluid-tight sealing. With a pressure rating of PN 16 and compliant with DIN standards, this valve is ideal for industrial and institutional use.
Product Specifications
Specifications Available Disc Material
Aluminum Bronze | Ductile Iron | Stainless Steel
Specifications Available Packing Material
EPDM | NBR | Viton
Specifications Available Seat Material
EPDM | NBR | Teflon | Viton
Specifications Available Stem Material
Stainless Steel
Specifications Body Material
Bronze | Carbon Steel | Cast Iron | Ductile Iron | Stainless Steel
Specifications Bolt Diameter
18 mm

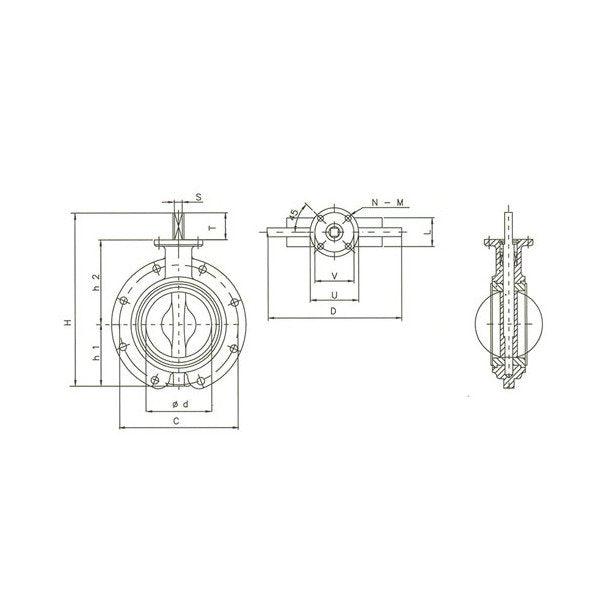

Specifications C
145 mm
Specifications Connection
Double Flanged
Specifications D
185 mm
Specifications D 1
185 mm
Specifications H
231 mm
Specifications H1
71 mm
Specifications H2
126 mm
Specifications L
46 mm
Specifications Number Of Bolts
4
Specifications Pressure
PN 16
Specifications Size
065 - 2-1/2"
Specifications Standard
DIN
Specifications Stem S
10 mm
Specifications Stem T
34 mm
Specifications Top Flange To Iso 5211 M Diameter
9 mm
Specifications Top Flange To Iso 5211 N Number Of Tap Holes
4 mm
Specifications Top Flange To Iso 5211 U
90 mm
Specifications Top Flange To Iso 5211 V
70 mm
Specifications Weight
3.6 kg
