DIN PN16 Mono Flanged Valve - Series 56

Name: DIN PN16 Mono Flanged Valve - Series 56
Brand: World Wide Metric, Inc.
SKU: VAL-ed366a
Price: 799.99 USD
Availability: OutOfStock

SKU:VAL-ed366a

Series 56 Mono Flanged Valve - DIN PN16, Sizes 2' to 32', Constructed with Bronze, Carbon Steel, Stainless Steel, and more. Compliant with ISO 5752 and DIN standards.

$799.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Series 56 Mono Flanged Valve with DIN PN16 rating offers a reliable solution for fluid control. Available in sizes ranging from 2' to 32' and constructed from high-quality materials including Bronze, Carbon Steel, Cast Iron, Ductile Iron, and Stainless Steel. With options for Ductile Iron, Stainless Steel, and Aluminum Bronze disc materials, along with Stainless Steel stems and NBR, EPDM, Viton, Teflon seat materials, this valve ensures durability and performance. Compliant with ISO 5752 and DIN standards, it guarantees secure flange connections and efficient operation, catering to the demanding requirements of institutional buyers.

Product Specifications

Specifications Available Disc Material

Aluminum Bronze | Ductile Iron | Stainless Steel

Specifications Available Packing Material

EPDM | NBR | Viton

Specifications Available Seat Material

EPDM | NBR | Teflon | Viton

Specifications Available Stem Material

Stainless Steel

Specifications Body Material

Bronze | Carbon Steel | Cast Iron | Ductile Iron | Stainless Steel

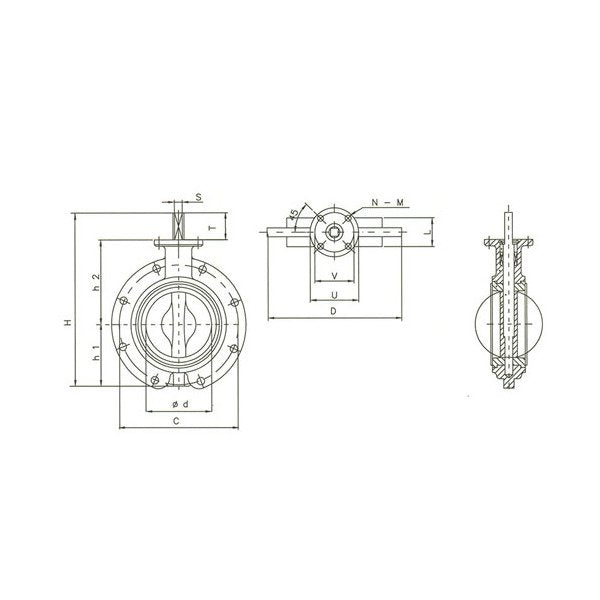

Specifications Bolt Diameter

39 mm

Specifications C

950 mm

Specifications Connection

Double Flanged

Specifications D

1025 mm

Specifications D 1

1021 mm

Specifications H

1195 mm

Specifications H1

525 mm

Specifications H2

610 mm

Specifications L

241 mm

Specifications Number Of Bolts

Specifications Pressure

PN 16

Specifications Size

800 - 32"

Specifications Standard

DIN

Specifications Stem S

46 mm

Specifications Stem T

60 mm

Specifications Top Flange To Iso 5211 M Diameter

21 mm

Specifications Top Flange To Iso 5211 N Number Of Tap Holes

4 mm

Specifications Top Flange To Iso 5211 U

210 mm

Specifications Top Flange To Iso 5211 V

165 mm

Specifications Weight

430.0 kg
