The Series 56 Mono Flanged Valves DIN PN16 are precision-engineered for optimal performance in industrial applications. With a size range of 50A to 800A, these valves feature a sturdy body available in various materials such as Cast Iron, Ductile Iron, Carbon Steel, Stainless Steel, and Bronze. The disc, stem, and seat materials ensure durability and compatibility with a wide range of fluids, while the NBR, EPDM, Viton, and Teflon packing options guarantee secure sealing. Compliant with ISO 5752 S16 standards, these valves offer reliable operation and longevity.
Product Specifications
Specifications Available Disc Material
Aluminum Bronze | Ductile Iron | Stainless Steel
Specifications Available Packing Material
EPDM | NBR | Viton
Specifications Available Seat Material
EPDM | NBR | Teflon | Viton
Specifications Available Stem Material
Stainless Steel
Specifications Body Material
Bronze | Carbon Steel | Cast Iron | Ductile Iron | Stainless Steel

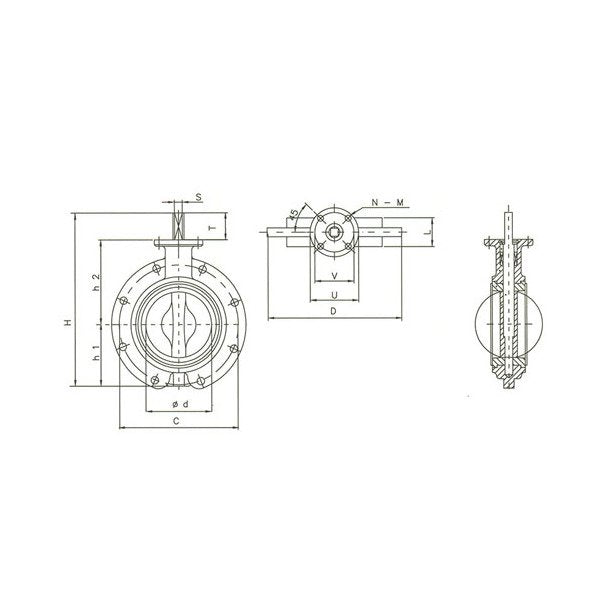

Specifications Bolt Diameter
18 mm
Specifications C
210 mm
Specifications Connection
Double Flanged
Specifications D
250 mm
Specifications D 1
250 mm
Specifications H
303 mm
Specifications H1
109 mm
Specifications H2
160 mm
Specifications L
70 mm
Specifications Number Of Bolts
8
Specifications Pressure
PN 16
Specifications Size
125 - 5"
Specifications Standard
DIN
Specifications Stem S
12 mm
Specifications Stem T
34 mm
Specifications Top Flange To Iso 5211 M Diameter
9 mm
Specifications Top Flange To Iso 5211 N Number Of Tap Holes
4 mm
Specifications Top Flange To Iso 5211 U
90 mm
Specifications Top Flange To Iso 5211 V
70 mm
Specifications Weight
11.0 kg
