DIN PN16 Mono Flanged Valves - Series 56
DIN PN16 Mono Flanged Valves - Series 56
SKU:VAL-9e4658
Series 56 Mono Flanged Valves DIN PN16 - Reliable fluid control with durable materials. Compliant with ISO 5752 S16 and DIN standards.
Regular price
$189.99
Regular price
Sale price
$189.99
Unit price
per
Initiate Order
DIN PN16 Mono Flanged Valves - Series 56
$189.99
Quantity: 1
Claim Your Seller Account
DIN PN16 Mono Flanged Valves - Series 56
$189.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Series 56 Mono Flanged Valves DIN PN16 offer a reliable solution for fluid control applications. With a size range from 50A to 800A, and material options including Cast Iron, Ductile Iron, Carbon Steel, Stainless Steel, and Bronze, these valves provide durability and versatility. The valve's design, compliant with ISO 5752 S16 standards, ensures efficient performance and easy maintenance. Stem and seat materials like Stainless Steel, EPDM, NBR, and Viton enhance the valve's longevity. Ideal for institutional procurement due to its adherence to DIN standards.
Product Specifications
Specifications Available Disc Material
Aluminum Bronze | Ductile Iron | Stainless Steel
Specifications Available Packing Material
EPDM | NBR | Viton
Specifications Available Seat Material
EPDM | NBR | Teflon | Viton
Specifications Available Stem Material
Stainless Steel
Specifications Body Material
Bronze | Carbon Steel | Cast Iron | Ductile Iron | Stainless Steel

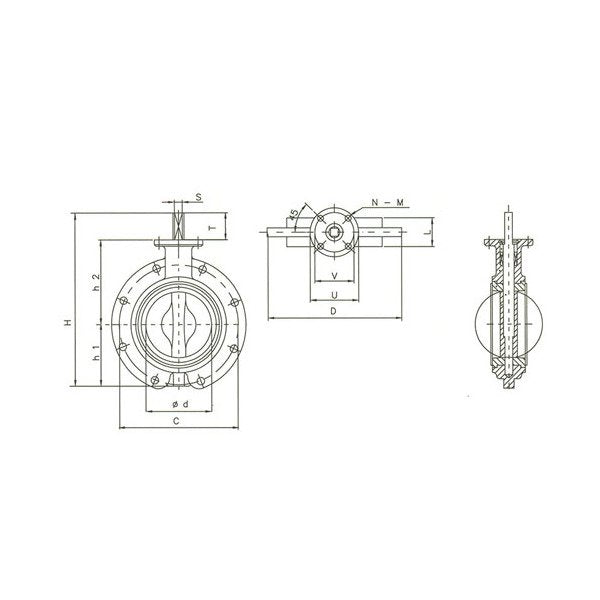

Specifications Bolt Diameter
33 mm
Specifications C
650 mm
Specifications Connection
Double Flanged
Specifications D
715 mm
Specifications D 1
670 mm
Specifications H
823 mm
Specifications H1
360 mm
Specifications H2
413 mm
Specifications L
152 mm
Specifications Number Of Bolts
20
Specifications Pressure
PN 16
Specifications Size
500 - 20"
Specifications Standard
DIN
Specifications Stem S
30 mm
Specifications Stem T
50 mm
Specifications Top Flange To Iso 5211 M Diameter
17 mm
Specifications Top Flange To Iso 5211 N Number Of Tap Holes
4 mm
Specifications Top Flange To Iso 5211 U
175 mm
Specifications Top Flange To Iso 5211 V
140 mm
Specifications Weight
155.0 kg
