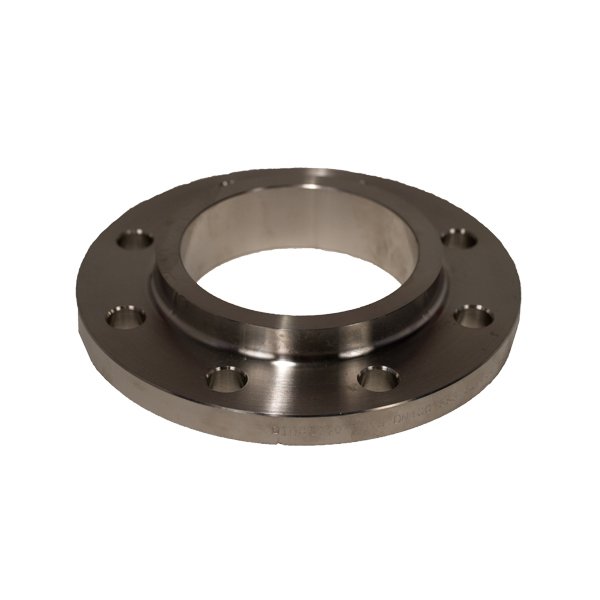

DIN PN16 Raised Faced Slip-On Flanges Steel, Size 350 - 14"

Name: DIN PN16 Raised Faced Slip-On Flanges Steel, Size 350 - 14"
Brand: World Wide Metric, Inc.
SKU: FLA-e3adfa
Price: 129.99 USD
Availability: OutOfStock

SKU:FLA-e3adfa

Premium DIN PN16 Raised Faced Slip-On Flanges Steel for secure and precise industrial pipe connections.

$129.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

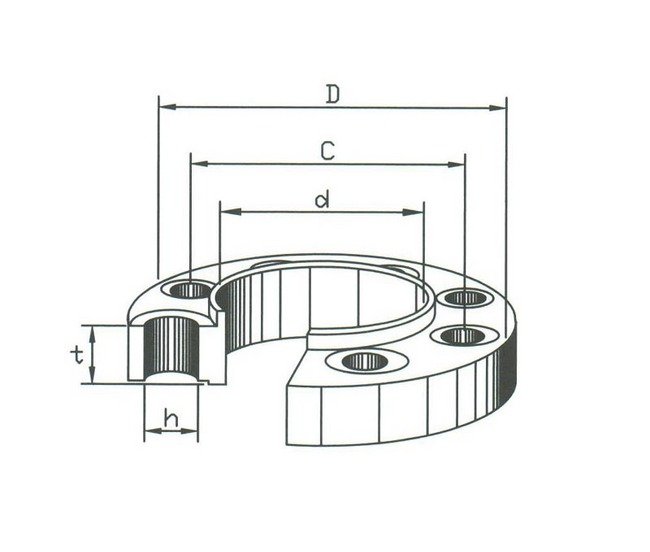

The DIN PN16 Raised Faced Slip-On Flanges Steel is designed for durable and secure pipe connections in industrial settings. With precise dimensions of d=355.6mm, D=520mm, and C=470mm, this flange ensures a tight seal under high pressure. Featuring 16 bolts for enhanced stability, a thickness of t=30mm, and a weight of 22.30kg, it meets stringent industry standards for reliability and performance. This product is ideal for applications requiring superior strength and precision.

Product Specifications

Flanges C

470 mm

Flanges D

520 mm

Flanges H

26 mm

Flanges H1

57 mm

Flanges Impaissa Code

735767

Flanges Number Of Bolts

Flanges Pressure

DIN PN16

Flanges Size

350 - 14"

Flanges T

30 mm

Flanges Weight

22.30 kg
