DIN PN16 Steel Blind Flange 800-32"
DIN PN16 Steel Blind Flange 800-32"
SKU:FLA-4965dc
Precision-engineered DIN PN16 Steel Blind Flange for industrial applications.
Regular price
$99.99
Regular price
Sale price
$99.99
Unit price
per
Initiate Order
DIN PN16 Steel Blind Flange 800-32"
$99.99
Quantity: 1
Claim Your Seller Account
DIN PN16 Steel Blind Flange 800-32"
$99.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

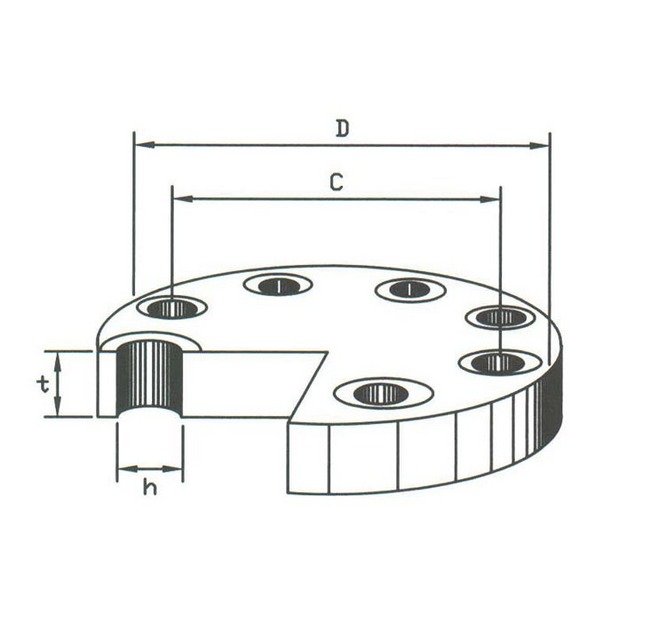

The DIN PN16 Steel Blind Flange is a premium industrial component designed for critical sealing applications. With a size range of 800-32", pressure rating of PN 16, and precision dimensions of d: 813mm, D: 1025mm, C: 950mm, this blind flange ensures reliable performance. Crafted from robust carbon steel, it features 24 bolts for secure installation, measuring h: 39mm and t: 62mm. Meeting stringent industry standards, this blind flange guarantees durability, efficiency, and compliance with regulatory requirements.
Product Specifications
Specifications C
950 mm
Specifications D
1025 mm
Specifications H
39 mm
Specifications Material
Carbon Steel
Specifications Number Of Bolts
24
Specifications Pressure
PN 16
Specifications Size
800 - 32"
Specifications T
62 mm
