DIN PN16 Steel Blind Flanges
DIN PN16 Steel Blind Flanges
SKU:FLA-6b790b
High-quality DIN PN16 Steel Blind Flanges for secure and leak-free connections in piping systems.
Regular price
$129.99
Regular price
Sale price
$129.99
Unit price
per
Initiate Order
DIN PN16 Steel Blind Flanges
$129.99
Quantity: 1
Claim Your Seller Account
DIN PN16 Steel Blind Flanges
$129.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

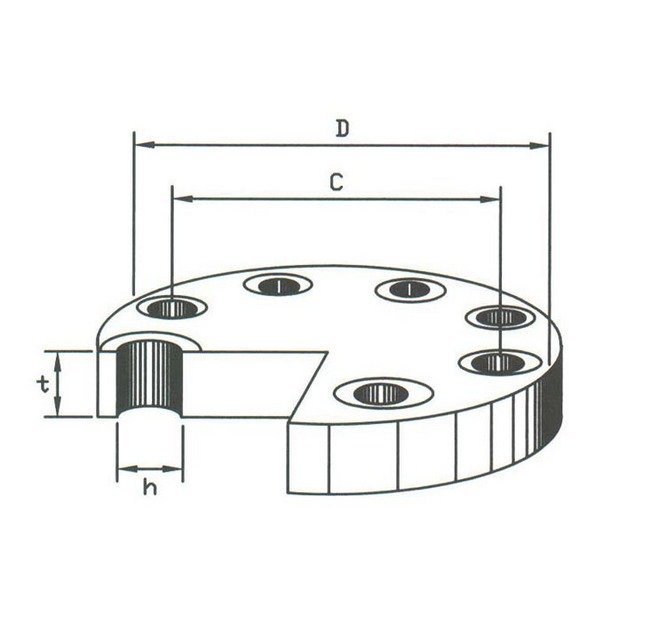

Enhance your piping systems with our DIN PN16 Steel Blind Flanges, engineered for durability and optimal performance. These flanges, made from high-quality carbon steel, are designed to withstand pressures up to PN 16. With precise dimensions of D: 315mm, C: 270mm, and a weight of 13.15kg, they ensure secure, leak-free connections. The 8 bolt design enhances stability, while meeting IMPA/ISSA Code standards for reliability in various applications.
Product Specifications
Specifications C
270 mm
Specifications D
315 mm
Specifications H
22 mm
Specifications Impaissa Code
735633 | 735663
Specifications Material
Carbon Steel
Specifications Number Of Bolts
8
Specifications Pressure
PN 16
Specifications Size
175 - 7"
Specifications T
24 mm
Specifications Weight
13.15 kg
