DIN PN16 Steel Blind Flanges

Name: DIN PN16 Steel Blind Flanges
Brand: World Wide Metric, Inc.
SKU: FLA-feafca
Price: 59.99 USD
Availability: OutOfStock

SKU:FLA-feafca

Durable DIN PN16 Steel Blind Flanges for reliable piping system sealing. Made of carbon steel with precise dimensions. Meets industry standards.

$59.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

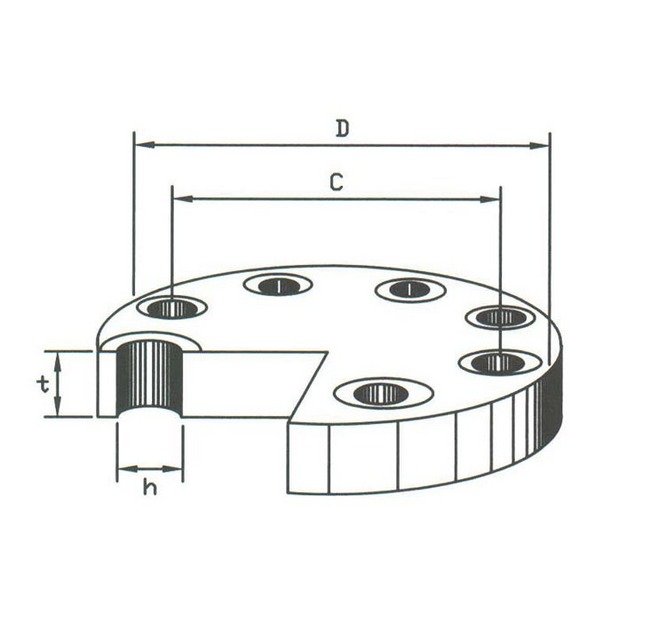

The DIN PN16 Steel Blind Flanges are designed for reliable sealing in piping systems. With a size range from 080 to 3 inches and a pressure rating of PN 16, these flanges are constructed from durable carbon steel. Featuring precise dimensions of d=88.9 mm, D=200 mm, and C=160 mm, they provide a secure connection with 8 bolts. Weighing 4.5 kg, these blind flanges meet stringent industry standards, making them suitable for a wide range of applications.

Product Specifications

Specifications C

160 mm

Specifications D

200 mm

Specifications H

18 mm

Specifications Impaissa Code

735629 | 735659

Specifications Material

Carbon Steel

Specifications Number Of Bolts

Specifications Pressure

PN 16

Specifications Size

080 - 3"

Specifications T

20 mm

Specifications Weight

4.5 kg
