DIN PN16 Steel Blind Flanges
DIN PN16 Steel Blind Flanges
SKU:FLA-6a2020
High-quality DIN PN16 Steel Blind Flanges for secure piping system sealing. PN 16 pressure rating, 273mm inner diameter, and 12 bolts for easy installation.
Regular price
$99.99
Regular price
Sale price
$99.99
Unit price
per
Initiate Order
DIN PN16 Steel Blind Flanges
$99.99
Quantity: 1
Claim Your Seller Account
DIN PN16 Steel Blind Flanges
$99.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

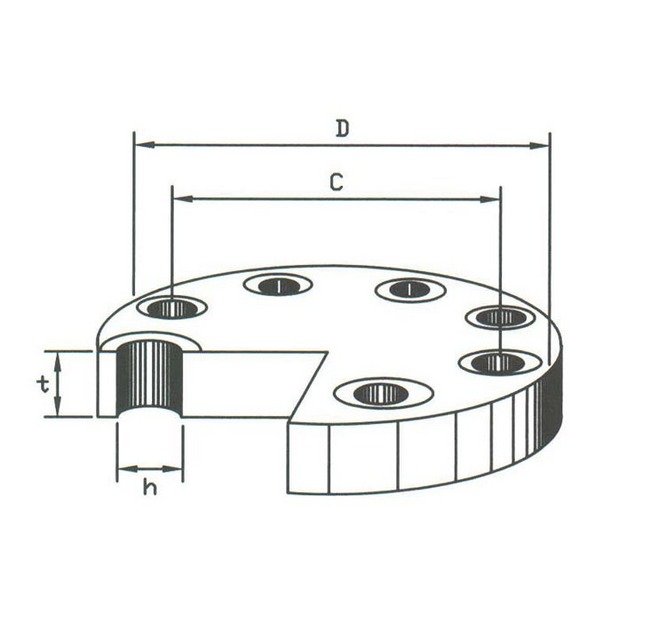

The DIN PN16 Steel Blind Flanges are essential components designed for sealing off piping systems securely. Crafted from robust carbon steel to endure high pressure at PN 16, these flanges boast precise dimensions: inner diameter (d) of 273 mm, outer diameter (D) of 405 mm, and a center-to-center distance (C) of 355 mm. With 12 sturdy bolts ensuring a tight fit, these blind flanges are not only durable but also easy to install. Weighing 30.60 kg, these flanges meet industry standards for quality and performance.
Product Specifications
Specifications C
355 mm
Specifications D
405 mm
Specifications H
26 mm
Specifications Impaissa Code
735665
Specifications Material
Carbon Steel
Specifications Number Of Bolts
12
Specifications Pressure
PN 16
Specifications Size
250 - 10"
Specifications T
26 mm
Specifications Weight
30.60 kg
