DIN PN16 Steel Blind Flanges - Size 16", PN 16

Name: DIN PN16 Steel Blind Flanges - Size 16", PN 16
Brand: World Wide Metric, Inc.
SKU: FLA-960cd9
Price: 349.99 USD
Availability: OutOfStock

SKU:FLA-960cd9

High-quality DIN PN16 Steel Blind Flanges for secure industrial connections. Size: 16", Pressure: PN 16.

$349.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

Our DIN PN16 Steel Blind Flanges are precisely crafted from carbon steel to meet the rigorous demands of industrial applications. With a size of 16 inches and pressure rating of PN 16, these flanges ensure secure connections in pipelines. Featuring 16 bolts for steadfast assembly, measuring 406.4 mm in diameter and weighing 82.20 kg, these blind flanges adhere to high-quality standards and offer exceptional durability and reliability.

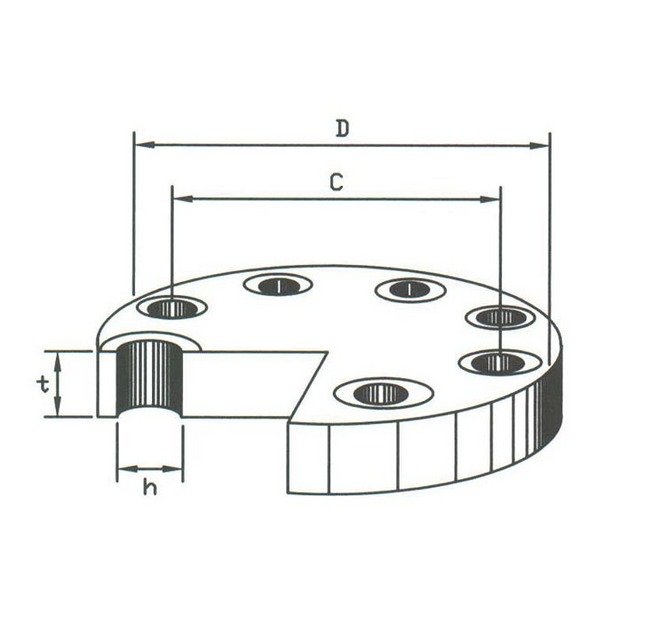

Product Specifications

Specifications C

525 mm

Specifications D

580 mm

Specifications H

30 mm

Specifications Impaissa Code

735668

Specifications Material

Carbon Steel

Specifications Number Of Bolts

Specifications Pressure

PN 16

Specifications Size

400 - 16"

Specifications T

32 mm

Specifications Weight

82.20 kg

DIN PN16 Steel Blind Flanges - Size 16", PN 16
