DIN PN16 Steel Flat Faced Slip-On Flanges - 40" Size
DIN PN16 Steel Flat Faced Slip-On Flanges - 40" Size
SKU:FLA-560851
High-quality DIN PN16 Steel Slip-On Flanges for industrial applications. Durable, leak-proof, and PN 16 rated. Meet DIN standards.
Regular price
$99.99
Regular price
Sale price
$99.99
Unit price
per
Initiate Order
DIN PN16 Steel Flat Faced Slip-On Flanges - 40" Size
$99.99
Quantity: 1
Claim Your Seller Account
DIN PN16 Steel Flat Faced Slip-On Flanges - 40" Size
$99.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Our DIN PN16 Steel Flat Faced Slip-On Flanges are engineered for heavy-duty industrial applications, offering a secure and leak-proof connection. Crafted from high-quality carbon steel, these flanges ensure durability and resistance to corrosion. With precise dimensions meeting DIN standards, including a 1016mm inner diameter and 1255mm outer diameter, they are ideal for critical pipelines and systems requiring PN 16 pressure rating. The 28-bolt design provides reliable fastening, while the 90mm thickness adds strength. Trust these flanges to deliver superior performance in demanding environments.
Ready to Grow Without Cash Flow Constraints?

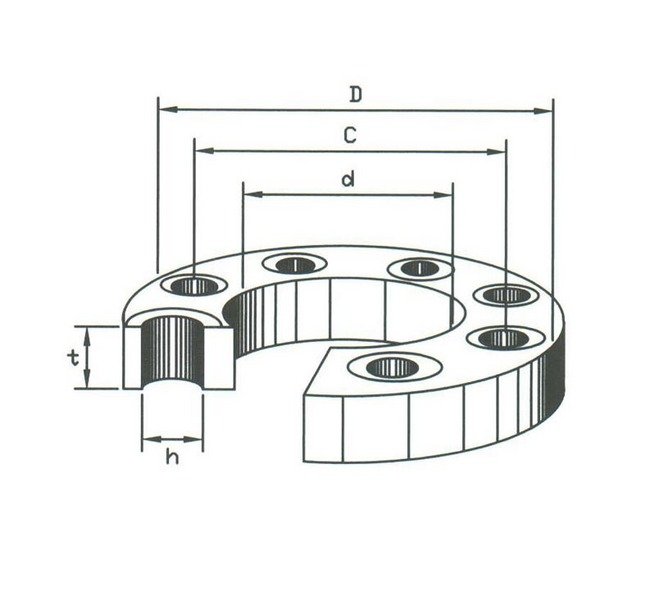

Product Specifications
Specifications C
1170 mm
Specifications D
1255 mm
Specifications H
42 mm
Specifications Material
Carbon Steel
Specifications Number Of Bolts
28
Specifications Pressure
PN 16
Specifications Size
1000 - 40"
Specifications T
90 mm
