DIN PN16 Steel Raised Face Weld Neck Flanges

Name: DIN PN16 Steel Raised Face Weld Neck Flanges
Brand: World Wide Metric, Inc.
SKU: FLA-cd426b
Price: 69.99 USD
Availability: OutOfStock

SKU:FLA-cd426b

High-quality DIN PN16 Steel Weld Neck Flanges for secure and precise industrial connections.

$69.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

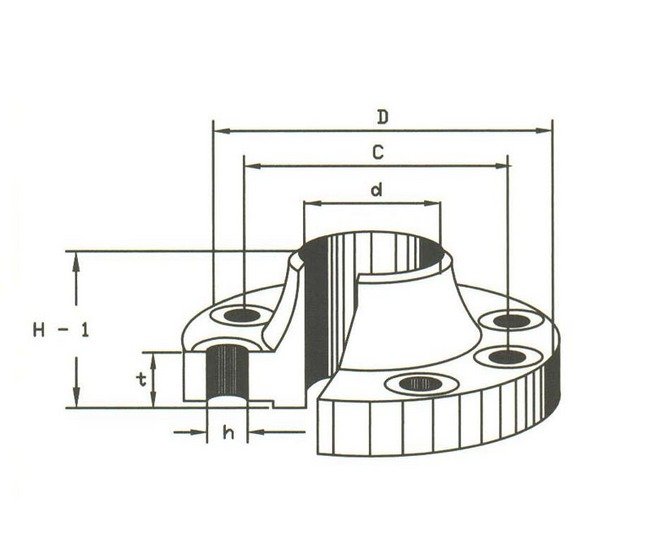

The DIN PN16 Steel Raised Face Weld Neck Flanges combine durability and precision engineering, featuring a size range from 025 to 1 inch. With a pressure rating of PN 16, these flanges offer a secure connection with 4 bolts ensuring tight sealing. Crafted with dimensions d: 33.7 mm, D: 115 mm, C: 85 mm, and a weight of 1.14 kg, they meet stringent quality standards and guarantee reliability in industrial applications.

Product Specifications

Specifications C

85 mm

Specifications D

115 mm

Specifications H

14 mm

Specifications H1

38 mm

Specifications Impaissa Code

735704

Specifications Number Of Bolts

Specifications Pressure

PN 16

Specifications Size

025 - 1"

Specifications T

18 mm

Specifications Weight

1.14 kg

DIN PN16 Steel Raised Face Weld Neck Flanges
