DIN PN16 Steel Raised Faced Slip-On Flanges - 20"
DIN PN16 Steel Raised Faced Slip-On Flanges - 20"
SKU:FLA-3070f6
Secure connectivity with DIN PN16 Steel Raised Faced Slip-On Flanges - 20"
Regular price
$289.99
Regular price
Sale price
$289.99
Unit price
per
Initiate Order
DIN PN16 Steel Raised Faced Slip-On Flanges - 20"
$289.99
Quantity: 1
Claim Your Seller Account
DIN PN16 Steel Raised Faced Slip-On Flanges - 20"
$289.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

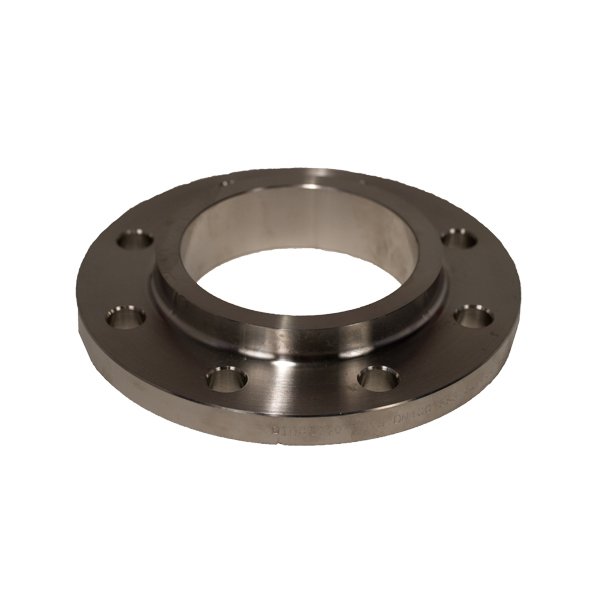

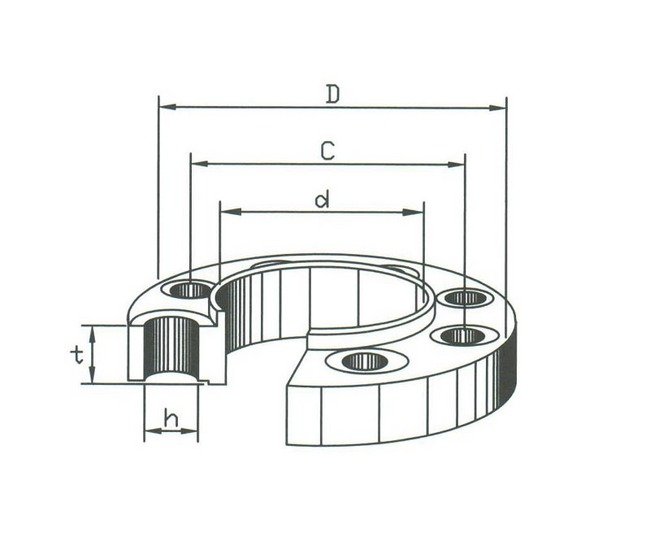

The DIN PN16 Steel Raised Faced Slip-On Flanges are designed for superior connectivity and durability in industrial settings. With a size of 500 - 20", these flanges offer secure sealing under DIN PN16 pressure ratings. Featuring precise dimensions (d: 508 mm, D: 715 mm, C: 650 mm) and 20 bolts for stability, these flanges weigh 37.30 kg and have a height (h) of 33 mm, ensuring reliable performance. The IMPA/ISSA Code 735769 signifies quality assurance and adherence to industry standards.
Product Specifications
Flanges C
650 mm
Flanges D
715 mm
Flanges H
33 mm
Flanges H1
73 mm
Flanges Impaissa Code
735769
Flanges Number Of Bolts
20
Flanges Pressure
DIN PN16
Flanges Size
500 - 20"
Flanges T
36 mm
Flanges Weight
37.30 kg
