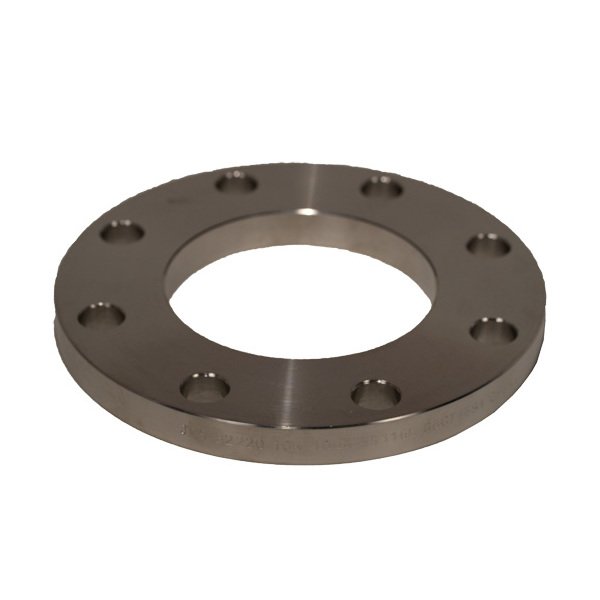

DIN PN16 Steel Slip-On Flange - 800-32"

Name: DIN PN16 Steel Slip-On Flange - 800-32"
Brand: World Wide Metric, Inc.
SKU: FLA-b4483d
Price: 129.99 USD
Availability: OutOfStock

SKU:FLA-b4483d

High-quality DIN PN16 Steel Slip-On Flange for reliable and secure piping connections. Size: 800-32". Pressure: PN 16. Material: Carbon Steel.

$129.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

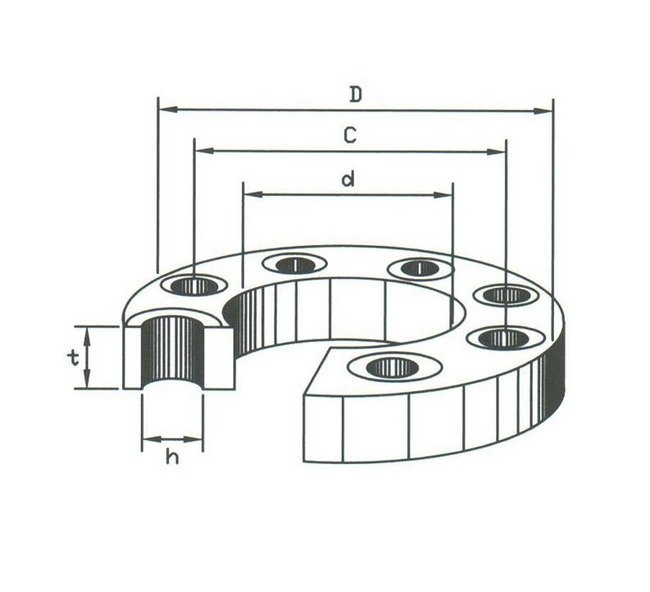

The DIN PN16 Steel Slip-On Flange is designed for reliable connection in industrial piping systems. With a size range of 800 - 32", this flange offers a pressure rating of PN 16, ensuring secure sealing. Crafted from durable Carbon Steel, it features precise dimensions, including d: 813mm, D: 1025mm, C: 950mm. With 24 bolts for strong attachment, this flange's flat face design enhances stability and efficiency in fluid handling applications.

Product Specifications

Specifications C

950 mm

Specifications D

1025 mm

Specifications H

39 mm

Specifications Material

Carbon Steel

Specifications Number Of Bolts

Specifications Pressure

PN 16

Specifications Size

800 - 32"

Specifications T

74 mm

DIN PN16 Steel Slip-On Flange - 800-32"
