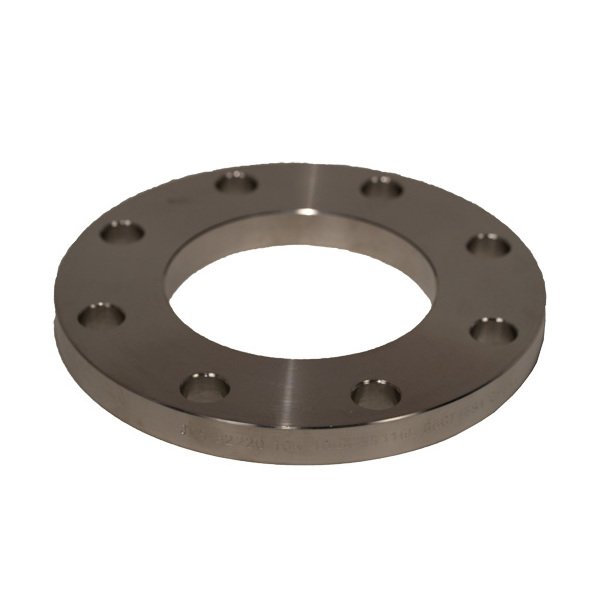

DIN PN16 Steel Slip-On Flange, Flat Faced - 500-20"

Name: DIN PN16 Steel Slip-On Flange, Flat Faced - 500-20"
Brand: World Wide Metric, Inc.
SKU: FLA-dddb1f
Price: 299.99 USD
Availability: OutOfStock

SKU:FLA-dddb1f

Premium PN16 Steel Slip-On Flange, Flat Faced for secure & leak-free connections in industrial settings.

$299.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The DIN PN16 Steel Slip-On Flange, Flat Faced in size 500-20" is a robust and durable carbon steel flange designed to withstand pressures up to PN 16. With precise dimensions meeting institutional standards, this flange ensures a secure and leak-free connection with its 20-bolt configuration. Weighing 65.10 kg, it offers enhanced stability and longevity, making it ideal for industrial applications.

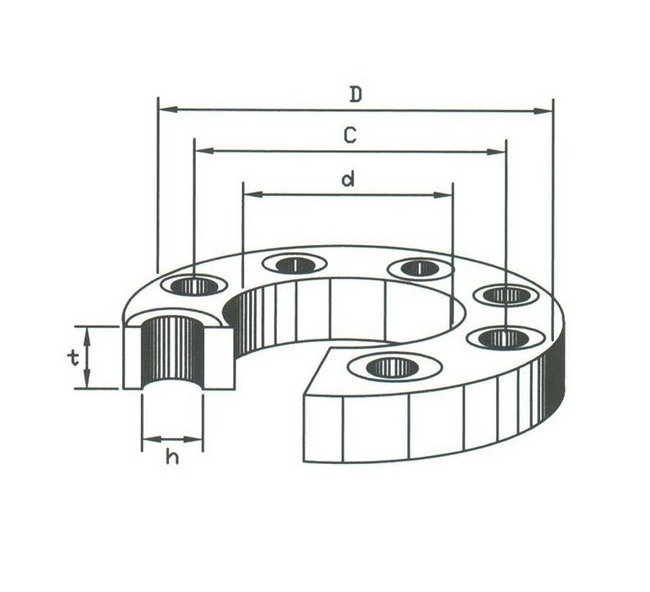

Product Specifications

Specifications C

650 mm

Specifications D

715 mm

Specifications H

33 mm

Specifications Impaissa Code

735570

Specifications Material

Carbon Steel

Specifications Number Of Bolts

Specifications Pressure

PN 16

Specifications Size

500 - 20"

Specifications T

46 mm

Specifications Weight

65.10 kg

DIN PN16 Steel Slip-On Flange, Flat Faced - 500-20"
