DIN PN16 Steel Slip-On Flanges - 100mm (4")

Name: DIN PN16 Steel Slip-On Flanges - 100mm (4")
Brand: World Wide Metric, Inc.
SKU: FLA-1bcc01
Price: 69.99 USD
Availability: OutOfStock

SKU:FLA-1bcc01

High-quality DIN PN16 Steel Slip-On Flanges for secure connections in industrial applications.

$69.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

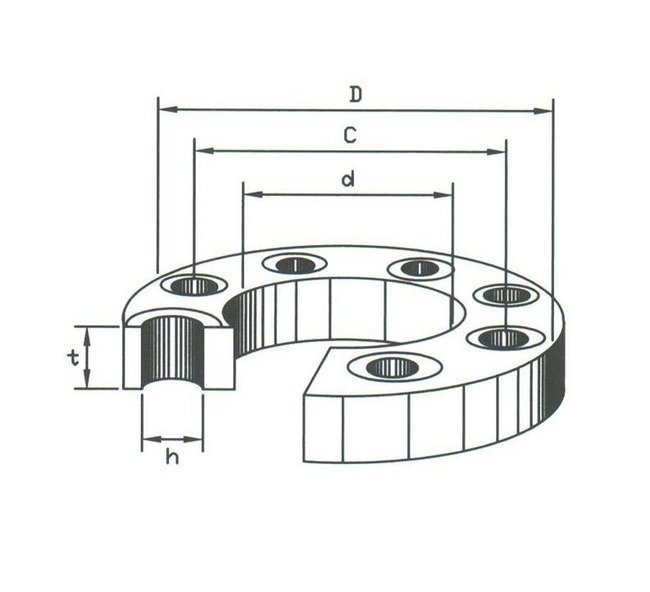

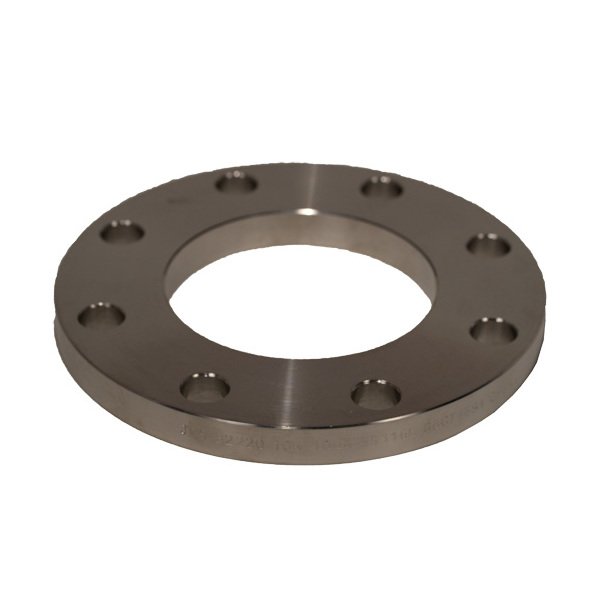

The Flat Faced Slip-On Flanges DIN PN16 Steel are designed for easy installation and secure connections. With a Size of 100mm (4") and a Pressure rating of PN 16, these flanges ensure reliable performance. Constructed from durable Carbon Steel, they feature precise dimensions with d: 114.3 mm, D: 220 mm, and C: 180 mm. Compliant with IMPA/ISSA Codes: 734550, 735530, 735560, these flanges are ideal for industrial applications requiring strength and precision.

Product Specifications

Specifications C

180 mm

Specifications D

220 mm

Specifications H

18 mm

Specifications Impaissa Code

734550 | 735530 | 735560

Specifications Material

Carbon Steel

Specifications Number Of Bolts

Specifications Pressure

PN 16

Specifications Size

100 - 4"

Specifications T

22 mm

Specifications Weight

4.5 kg

DIN PN16 Steel Slip-On Flanges - 100mm (4")
