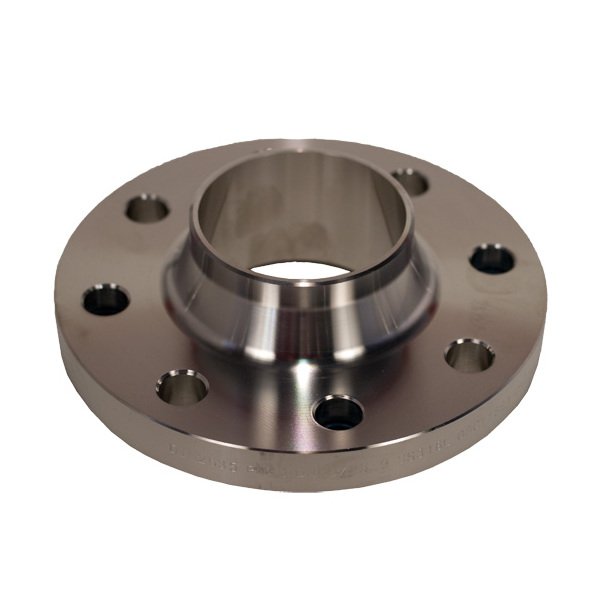

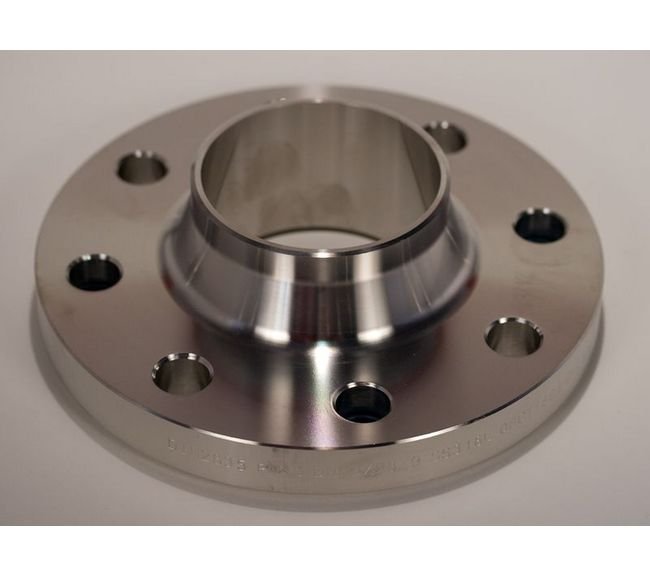

DIN PN16 Steel Weld Neck Flange - 7"

Name: DIN PN16 Steel Weld Neck Flange - 7"
Brand: World Wide Metric, Inc.
SKU: FLA-adb557
Price: 129.99 USD
Availability: OutOfStock

SKU:FLA-adb557

Reliable DIN PN16 Steel Weld Neck Flange - 7" for high-pressure applications. Meets IMPA/ISSA Code 735713.

$129.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

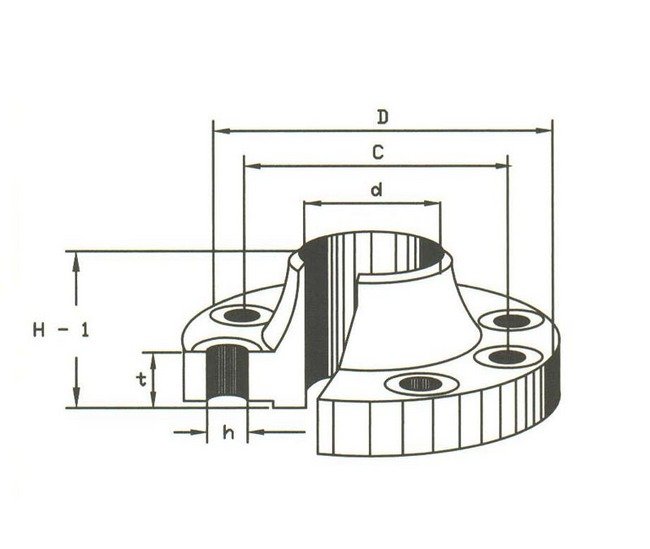

The Raised Face Weld Neck Flange DIN PN16 Steel is designed for reliable and durable performance in industrial settings. With a size of 175 - 7" and a pressure rating of PN16, this flange ensures secure connections in high-pressure applications. Featuring precise dimensions, including d, D, C, and H1, along with 8 bolts for secure assembly, this flange is engineered for efficiency and longevity. Weighing 9.85 kg, this flange meets IMPA/ISSA Code 735713 standards, making it a trusted choice for varied industrial needs.

Product Specifications

Specifications C

270 mm

Specifications D

315 mm

Specifications H

22 mm

Specifications H1

60 mm

Specifications Impaissa Code

735713

Specifications Number Of Bolts

Specifications Pressure

PN 16

Specifications Size

175 - 7"

Specifications T

24 mm

Specifications Weight

9.85 kg
