The Series 58 Teflon Lined Butterfly Valve, designed for industrial applications, offers a robust construction with a size range from 2" to 24". Its versatile materials such as Cast Iron, Ductile Iron, Carbon Steel, and Stainless Steel ensure durability and reliability. The valve meets DIN standards, providing a secure flange connection with precise dimensions. With various seat and packing material options including EPDM, NBR, Viton, and Teflon, this valve guarantees superior performance and longevity.
Product Specifications
Specifications Available Disc Material
Aluminum Bronze | Ductile Iron | Stainless Steel
Specifications Available Packing Material
EPDM | NBR | Viton
Specifications Available Seat Material
EPDM | NBR | Teflon | Viton
Specifications Available Stem Material
Stainless Steel
Specifications Body Material
Bronze | Carbon Steel | Cast Iron | Ductile Iron | Stainless Steel

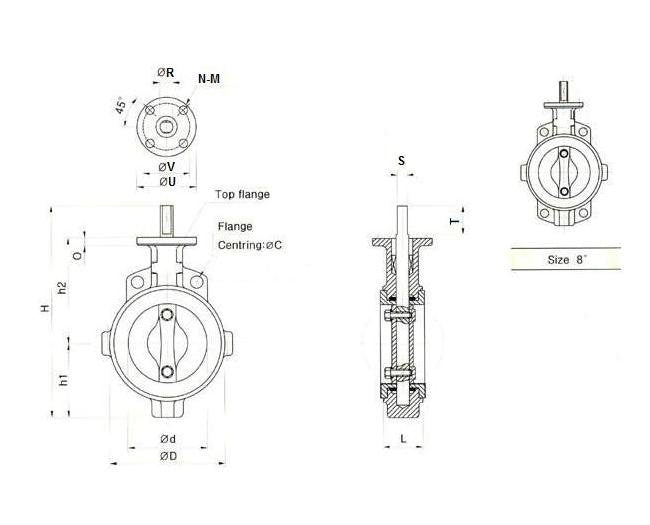

Specifications Bolt Diameter
23 mm
Specifications C
295 mm
Specifications D
259 mm
Specifications H
433 mm
Specifications H1
163 mm
Specifications H2
238 mm
Specifications L
60 mm
Specifications Number Of Bolts
12
Specifications O
13 mm
Specifications Pressure
PN 16
Specifications Size
200 - 8"
Specifications Standard
DIN
Specifications Stem R
22 mm
Specifications Stem S
18 mm
Specifications Stem T
38 mm
Specifications Top Flange To Iso 5211 M Diameter
9 mm
Specifications Top Flange To Iso 5211 N Number Of Tap Holes
4
Specifications Top Flange To Iso 5211 U
90 mm
Specifications Top Flange To Iso 5211 V
70 mm
Specifications Weight
11.5 kg
