The Series 58 Teflon Lined Butterfly Valve, designed with precision to meet ISO 5752 S-20 standards, offers a Size Range from 50A to 600A (2" to 24"). With Body Material options including Cast Iron, Ductile Iron, Carbon Steel, Stainless Steel, and Bronze, and Disc, Stem, and Seat Material variations available, this valve ensures superior performance and durability. Ideal for applications requiring reliable sealing and corrosion resistance.
Product Specifications
Specifications Available Disc Material
Aluminum Bronze | Ductile Iron | Stainless Steel
Specifications Available Packing Material
EPDM | NBR | Viton
Specifications Available Seat Material
EPDM | NBR | Teflon | Viton
Specifications Available Stem Material
Stainless Steel
Specifications Body Material
Bronze | Carbon Steel | Cast Iron | Ductile Iron | Stainless Steel

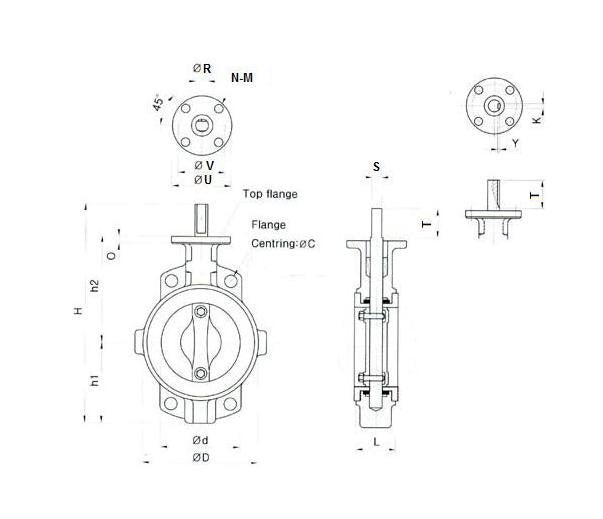

Specifications Bolt Diameter
27 mm
Specifications C
470 mm
Specifications D
416 mm
Specifications H
675 mm
Specifications H1
271 mm
Specifications H2
324 mm
Specifications L
78 mm
Specifications Number Of Bolts
16
Specifications O
20 mm
Specifications Pressure
PN 16
Specifications Size
350 - 14"
Specifications Standard
DIN
Specifications Stem R
32 mm
Specifications Stem S
20 mm
Specifications Stem T
45 mm
Specifications Top Flange To Iso 5211 M Diameter
12 mm
Specifications Top Flange To Iso 5211 N Number Of Tap Holes
4
Specifications Top Flange To Iso 5211 U
125 mm
Specifications Top Flange To Iso 5211 V
102 mm
Specifications Weight
44 kg
