DIN PN16 Teflon Lined Valve Series 58 - 300-12"
DIN PN16 Teflon Lined Valve Series 58 - 300-12"
SKU:VAL-150ee1
Reliable DIN PN16 Teflon Lined Valve Series 58 - Ideal for industrial applications, crafted from premium materials, and compliant with DIN standards.
Regular price
$299.99
Regular price
Sale price
$299.99
Unit price
per
Initiate Order
DIN PN16 Teflon Lined Valve Series 58 - 300-12"
$299.99
Quantity: 1
Claim Your Seller Account
DIN PN16 Teflon Lined Valve Series 58 - 300-12"
$299.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The DIN PN16 Teflon Lined Valve Series 58 delivers reliable performance in industrial environments, featuring a range of sizes from 2" to 24". Crafted from high-quality materials such as Bronze, Carbon Steel, Ductile Iron, and Stainless Steel, this valve ensures durability and corrosion resistance. With available disc materials including Aluminum Bronze, Ductile Iron, and Stainless Steel, along with seat options like EPDM, NBR, Teflon, and Viton, it provides versatile solutions for various applications. Compliant with DIN standards and designed for ease of installation, operation, and maintenance, this valve is ideal for both consumer and institutional buyers requiring precision and durability in their systems.
Product Specifications
Specifications Available Disc Material
Aluminum Bronze | Ductile Iron | Stainless Steel
Specifications Available Packing Material
EPDM | NBR | Viton
Specifications Available Seat Material
EPDM | NBR | Teflon | Viton
Specifications Available Stem Material
Stainless Steel
Specifications Body Material
Bronze | Carbon Steel | Cast Iron | Ductile Iron | Stainless Steel
Specifications Bolt Diameter
27 mm

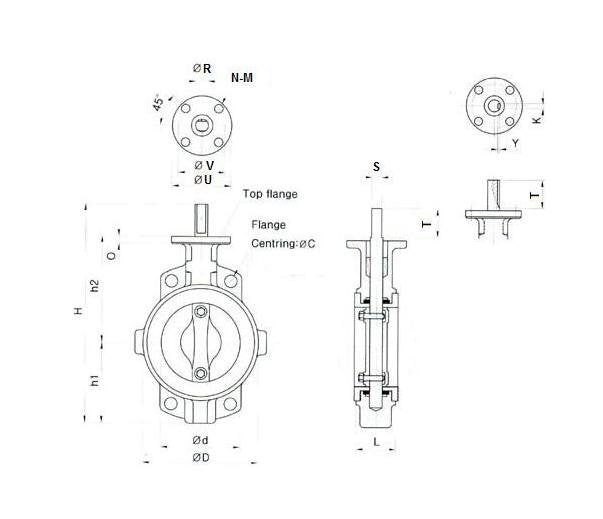

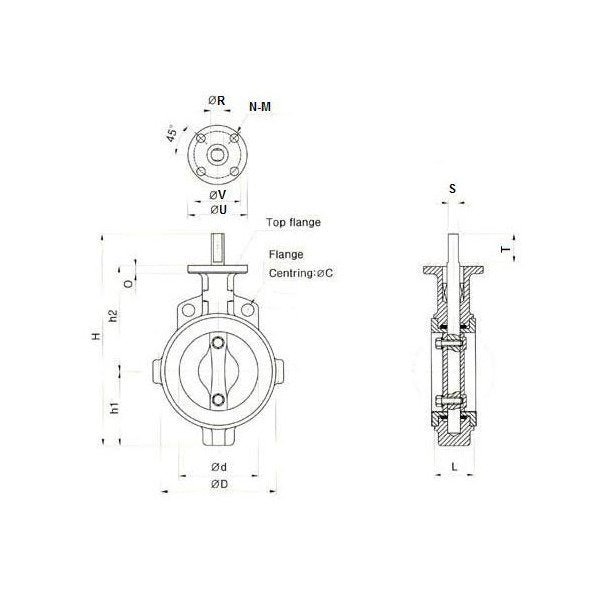

Specifications C
410 mm
Specifications D
374 mm
Specifications H
601 mm
Specifications H1
252 mm
Specifications H2
315 mm
Specifications L
78 mm
Specifications Number Of Bolts
12
Specifications O
15 mm
Specifications Pressure
PN 16
Specifications Size
300 - 12"
Specifications Standard
DIN
Specifications Stem R
28 mm
Specifications Stem S
20 mm
Specifications Stem T
45 mm
Specifications Top Flange To Iso 5211 M Diameter
12 mm
Specifications Top Flange To Iso 5211 N Number Of Tap Holes
4
Specifications Top Flange To Iso 5211 U
125 mm
Specifications Top Flange To Iso 5211 V
102 mm
Specifications Weight
32.0 kg
