DIN PN16 Teflon Lined Valves - Series 58

Name: DIN PN16 Teflon Lined Valves - Series 58
Brand: World Wide Metric, Inc.
SKU: VAL-b1f5cf
Price: 699.99 USD
Availability: OutOfStock

SKU:VAL-b1f5cf

Precision-engineered Series 58 Teflon Lined Valves designed for durability and performance in industrial applications.

$699.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Series 58 Teflon Lined Valves DIN PN16 are precision-engineered for superior performance in demanding applications. These valves feature a range of body materials including Bronze, Carbon Steel, Cast Iron, Ductile Iron, and Stainless Steel, with disc options in Aluminum Bronze, Ductile Iron, and Stainless Steel. The stem is constructed from durable Stainless Steel, while the available seat materials include EPDM, NBR, Teflon, and Viton. With compliance to DIN standards and a pressure rating of PN16, these valves ensure reliability and longevity in varied industrial environments.

Product Specifications

Specifications Available Disc Material

Aluminum Bronze | Ductile Iron | Stainless Steel

Specifications Available Packing Material

EPDM | NBR | Viton

Specifications Available Seat Material

EPDM | NBR | Teflon | Viton

Specifications Available Stem Material

Stainless Steel

Specifications Body Material

Bronze | Carbon Steel | Cast Iron | Ductile Iron | Stainless Steel

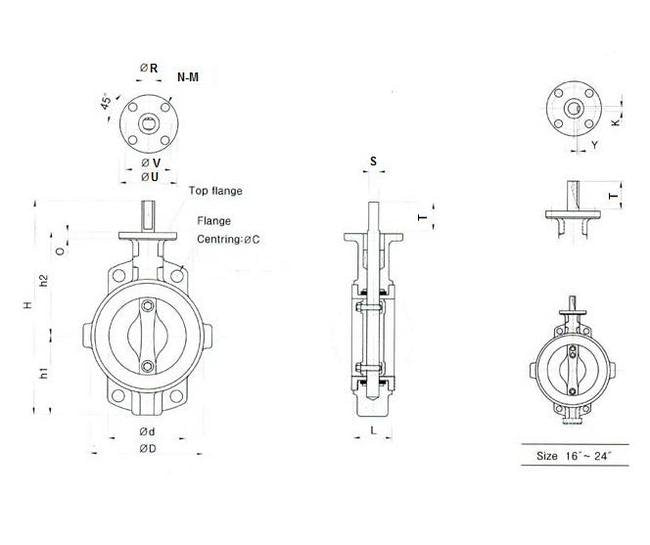

Specifications D

643 mm

Specifications H

1085 mm

Specifications H1

440 mm

Specifications H2

528 mm

Specifications L

154 mm

Specifications Pressure

PN 16

Specifications Size

550 - 22"

Specifications Standard

DIN

Specifications Stem T

60 mm

Specifications Top Flange To Iso 5211 M Diameter

22 mm

Specifications Top Flange To Iso 5211 N Number Of Tap Holes

Specifications Top Flange To Iso 5211 U

210 mm

Specifications Top Flange To Iso 5211 V

165 mm

Specifications Weight

164 kg

DIN PN16 Teflon Lined Valves - Series 58
