DIN PN16 Wafer Check Valve - Long Valve Design
DIN PN16 Wafer Check Valve - Long Valve Design
SKU:VAL-230eab
High-quality DIN PN16 Wafer Check Valve for reliable hydraulic control in industrial settings. Crafted with durable materials and compliant with DIN2501-PN16 standards.
Regular price
$129.99
Regular price
Sale price
$129.99
Unit price
per
Initiate Order
DIN PN16 Wafer Check Valve - Long Valve Design
$129.99
Quantity: 1
Claim Your Seller Account
DIN PN16 Wafer Check Valve - Long Valve Design
$129.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The DIN PN16 Wafer Check Valve with a long valve design is expertly crafted with a Carbon Steel body, Stainless Steel disc, arm, and spring for durability and reliability. The Viton seat ensures a tight seal, while the Gravity actuator allows for seamless operation. Meeting stringent DIN2501-PN16 standards, this valve is ideal for industrial applications requiring precise hydraulic control and resistance to corrosion.
Product Specifications
Specifications Actuators
Gravity
Specifications Body Material
Carbon Steel

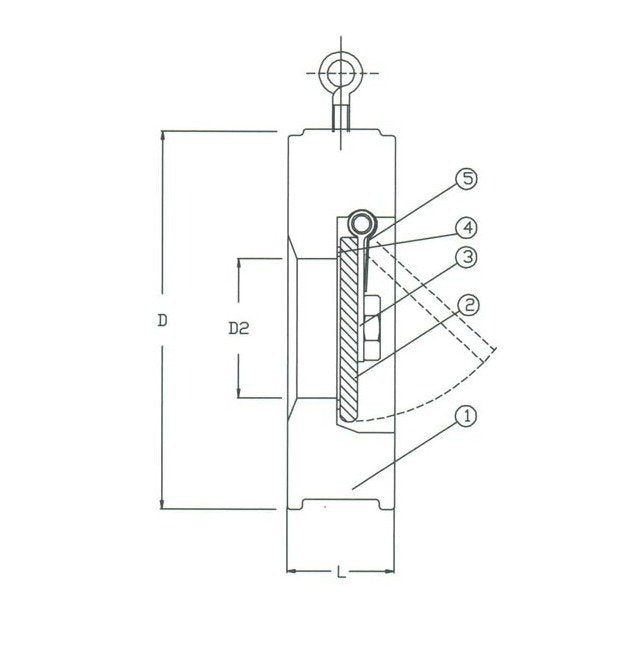

Specifications D
164 mm
Specifications D2
76 mm
Specifications Disc Material
Stainless Steel
Specifications Hydraulic Inspection Body
25
Specifications Hydraulic Inspection Seat
16
Specifications Impaissa Code
755964
Specifications L
57.0 mm
Specifications Seat Material
Synthetic Material
Specifications Size
100
Specifications Stem Material
Stainless Steel
Specifications Weight
5.4 kg
