DIN PN16 Wafer Check Valve - Long Valve Design
DIN PN16 Wafer Check Valve - Long Valve Design
SKU:VAL-af9649
High-performance DIN PN16 Wafer Check Valve for seamless integration and durability in high-pressure environments.
Regular price
$499.99
Regular price
Sale price
$499.99
Unit price
per
Initiate Order
DIN PN16 Wafer Check Valve - Long Valve Design
$499.99
Quantity: 1
Claim Your Seller Account
DIN PN16 Wafer Check Valve - Long Valve Design
$499.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

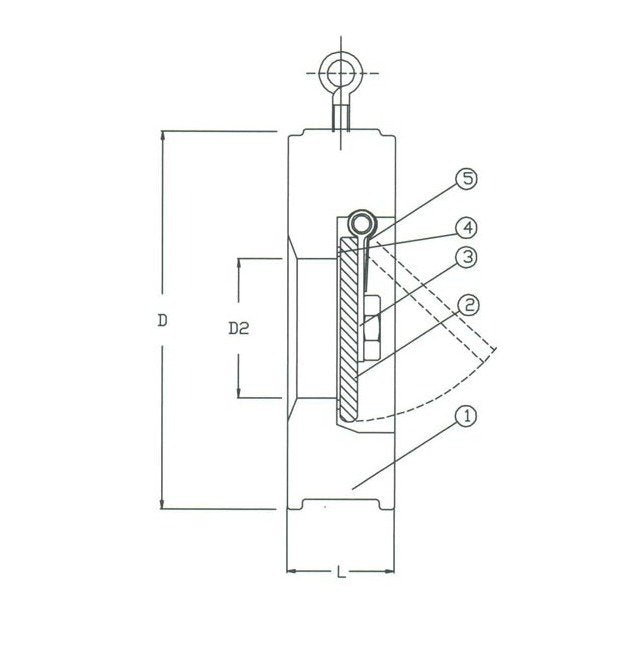

The DIN PN16 Wafer Check Valve is crafted with a carbon steel body, stainless steel disc and arm, Viton seat, and stainless steel spring, ensuring durability and performance. With hydraulic inspections meeting industry standards, this valve is designed for seamless integration between flanges according to Din2501-PN16. Ideal for high-pressure environments, the valve boasts a size of 400, weight of 91 kg, and gravity actuators for efficient operation.
Product Specifications
Specifications Actuators
Gravity
Specifications Body Material
Carbon Steel
Specifications D
498 mm
Specifications D2
318 mm
Specifications Disc Material
Stainless Steel
Specifications Hydraulic Inspection Body
16
Specifications Hydraulic Inspection Seat
10
Specifications Impaissa Code
755971
Specifications L
108 mm
Specifications Seat Material
Synthetic Material
Specifications Size
400
Specifications Stem Material
Stainless Steel
Specifications Weight
91 kg
