DIN PN16 Wafer Check Valve - Long Valve, Size 125
DIN PN16 Wafer Check Valve - Long Valve, Size 125
SKU:VAL-106274
Reliable DIN PN16 Wafer Check Valve - Size 125, Carbon Steel Body, Stainless Steel Disc & Arm, Viton Seat, Din2501-PN16 Mounting
Regular price
$159.99
Regular price
Sale price
$159.99
Unit price
per
Initiate Order
DIN PN16 Wafer Check Valve - Long Valve, Size 125
$159.99
Quantity: 1
Claim Your Seller Account
DIN PN16 Wafer Check Valve - Long Valve, Size 125
$159.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The DIN PN16 Wafer Check Valve in a long valve design is a robust solution for fluid control in industrial settings. Crafted with Carbon Steel body, AISI 316L Stainless Steel disc and arm, and Viton seat, this valve ensures durability and reliability. It meets Din2501-PN16 flange mounting standards, offering seamless integration and optimal performance.

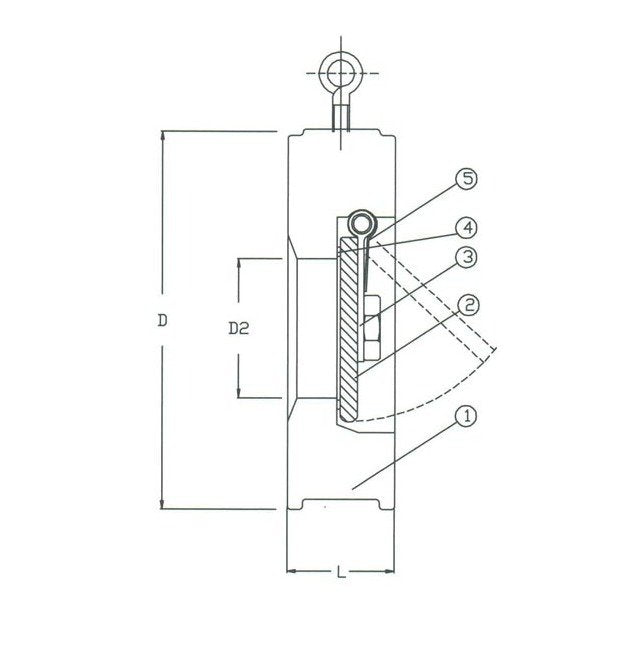

Product Specifications
Specifications Actuators
Gravity
Specifications Body Material
Carbon Steel
Specifications D
194 mm
Specifications D2
95 mm
Specifications Disc Material
Stainless Steel
Specifications Hydraulic Inspection Body
25
Specifications Hydraulic Inspection Seat
16
Specifications Impaissa Code
755965
Specifications L
64 mm
Specifications Seat Material
Synthetic Material
Specifications Size
125
Specifications Stem Material
Stainless Steel
Specifications Weight
7.3 kg
