DIN PN16 Wafer Check Valve with Stainless Steel Disc

Name: DIN PN16 Wafer Check Valve with Stainless Steel Disc
Brand: World Wide Metric, Inc.
SKU: VAL-e80878
Price: 129.99 USD
Availability: OutOfStock

SKU:VAL-e80878

High-quality DIN PN16 Wafer Check Valve with stainless steel disc for reliable flow control.

$129.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

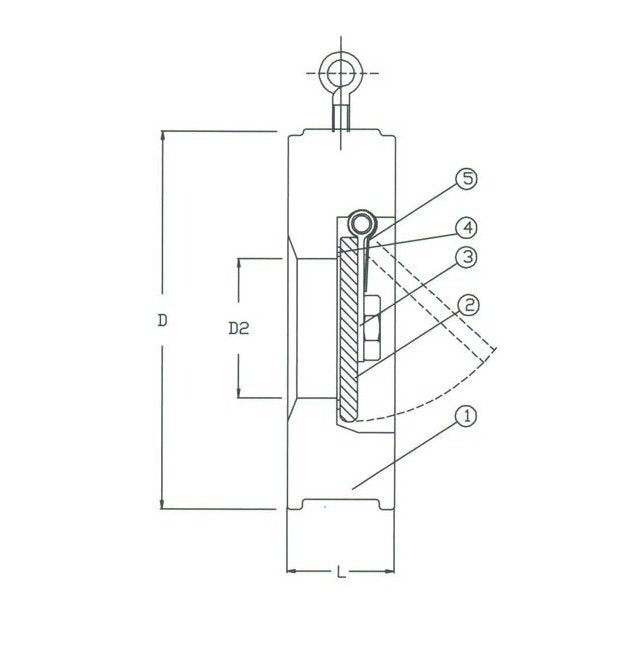

The DIN PN16 Wafer Check Valve is designed for reliable performance. Constructed with a carbon steel body and a stainless steel disc, this valve ensures durability and corrosion resistance. The Viton seat provides a tight seal, and the stainless steel spring adds to its longevity. With dimensions compliant with DIN2501-PN16, this valve is ideal for various applications requiring efficient flow control.

Product Specifications

Specifications Actuators

Gravity

Specifications Body Material

Carbon Steel

Specifications D

220 mm

Specifications D2

121 mm

Specifications Disc Material

Stainless Steel

Specifications Hydraulic Inspection Body

Specifications Hydraulic Inspection Seat

Specifications Impaissa Code

755966

Specifications L

70 mm

Specifications Seat Material

Synthetic Material

Specifications Size

150

Specifications Stem Material

Stainless Steel

Specifications Weight

9.2 kg

DIN PN16 Wafer Check Valve with Stainless Steel Disc
