DIN PN16 Wafer Check Valves with long valve design, Carbon Steel Body, Stainless Steel Disc, Viton Seat - Ideal for hydraulic systems.
Regular price
$899.99
Regular price
Sale price
$899.99
Unit price
per
Initiate Order
DIN PN16 Wafer Check Valves - Long Valve Design
$899.99
Quantity: 1
Claim Your Seller Account
DIN PN16 Wafer Check Valves - Long Valve Design
$899.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The PN 16 Wafer Check Valve with a long valve design is engineered for reliable performance in industrial applications. Crafted with a carbon steel body and a stainless steel disc for durability, this valve ensures secure flow control. The Viton seat and AISI 316L stainless steel components enhance the valve's resistance to corrosion and wear. Suitable for DIN2501-PN16 flange installation, this valve offers a reliable solution for regulating hydraulic systems.
Product Specifications
Specifications Actuators
Gravity
Specifications Body Material
Carbon Steel

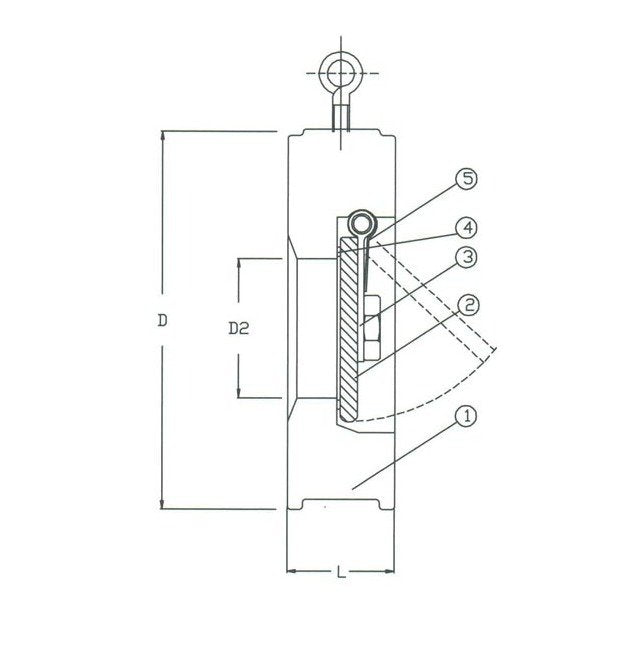

Specifications D
620 mm
Specifications D2
387 mm
Specifications Disc Material
Stainless Steel
Specifications Hydraulic Inspection Body
16
Specifications Hydraulic Inspection Seat
10
Specifications Impaissa Code
755973
Specifications L
140 mm
Specifications Seat Material
Synthetic Material
Specifications Size
500
Specifications Stem Material
Stainless Steel
Specifications Weight
154.0 kg
