DIN PN16 Y-Strainers, Cast Steel - GSG25N2
DIN PN16 Y-Strainers, Cast Steel - GSG25N2
SKU:VAL-4bd91b
High-performance DIN PN16 Y-Strainers, Cast Steel - GSG25N2. Reliable, durable, and DIN standards compliant for institutional use.
Regular price
$589.99
Regular price
Sale price
$589.99
Unit price
per
Initiate Order
DIN PN16 Y-Strainers, Cast Steel - GSG25N2
$589.99
Quantity: 1
Claim Your Seller Account
DIN PN16 Y-Strainers, Cast Steel - GSG25N2
$589.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The DIN PN16 Y-Strainers are crafted with precision using Cast Steel-GSG25N2 for superior durability. Featuring a Stainless Steel AISI 304 Strainer and compliance with DIN standards, these valves provide reliable performance for institutional and government applications. With a robust body and precise design as per DIN 3202-F1, they ensure efficient operation and easy installation in various systems.

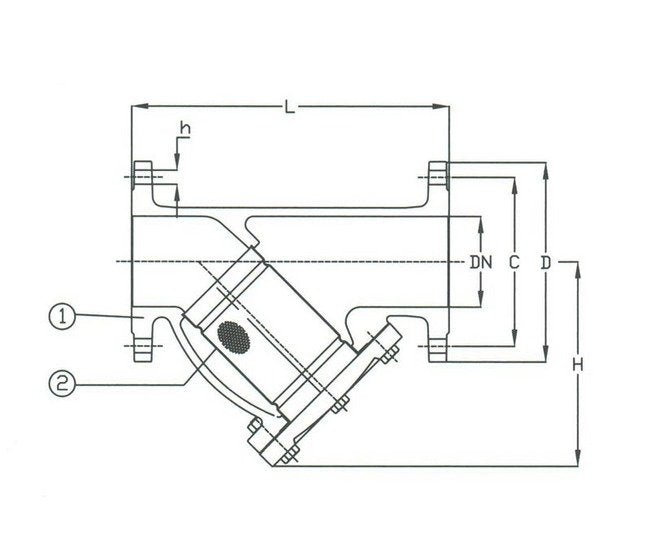

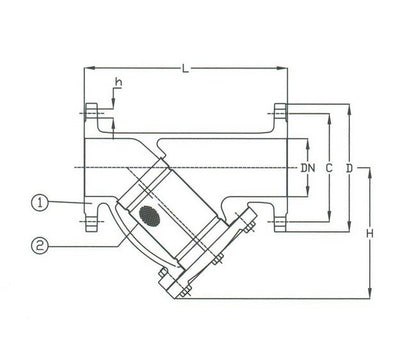

Product Specifications
Specifications Body Material
Cast Steel
Specifications C
240 mm
Specifications D
285 mm
Specifications H
300 mm
Specifications Hydraulic Inspection Body
25
Specifications Hydraulic Inspection Seat
16
Specifications L
480 mm
Specifications Number Of Holes
8
Specifications Size
150
Specifications T
22 mm
Specifications Weight
71 kg
