DIN PN160 Cast Steel Globe Regular Valve - 065 Size
DIN PN160 Cast Steel Globe Regular Valve - 065 Size
SKU:VAL-e2b6aa
Durable DIN PN160 Globe Valve - Cast Steel Body, Stellited Disc, Stainless Steel Seat - Ideal for Industrial Applications
Regular price
$399.99
Regular price
Sale price
$399.99
Unit price
per
Initiate Order
DIN PN160 Cast Steel Globe Regular Valve - 065 Size
$399.99
Quantity: 1
Claim Your Seller Account
DIN PN160 Cast Steel Globe Regular Valve - 065 Size
$399.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The DIN PN160 Cast Steel Globe Regular Valve is a reliable and durable solution for industrial fluid control. Constructed with Cast Steel body, Stellited disc, and Stainless Steel seat, this valve ensures longevity and optimal performance. Meeting ISO5752 and DIN2501-PN160 standards, this valve offers high hydraulic inspection ratings and precise dimensions for seamless integration. The Stellite stem and Handwheel actuators provide smooth operation and control, making it ideal for critical applications.

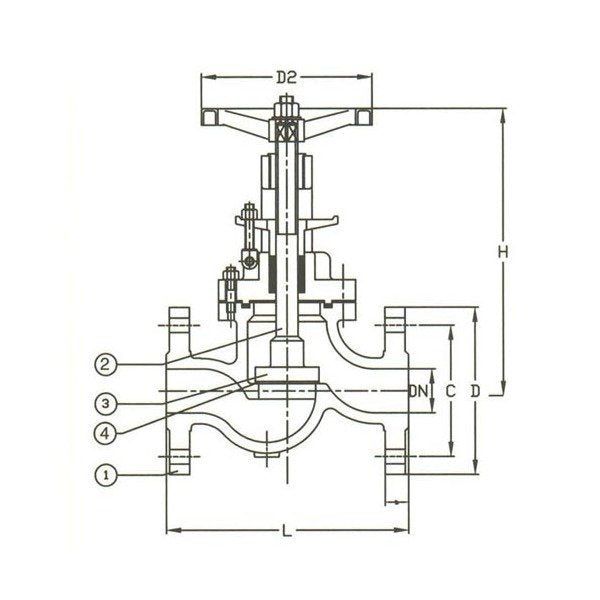

Product Specifications
Specifications Actuators
Handwheel
Specifications Body Material
Cast Steel
Specifications C
170 mm
Specifications Connection
Flanged Drilled
Specifications D
220 mm
Specifications D2
225 mm
Specifications Disc Material
Stellited
Specifications H
480 mm
Specifications Hydraulic Inspection Body
240
Specifications Hydraulic Inspection Seat
160
Specifications Impaissa Code
755438
Specifications L
340 mm
Specifications Number Of Holes
8
Specifications Seat Material
Stainless Steel
Specifications Size
065
Specifications Stem Material
Stellite
Specifications T
34 mm
Specifications Weight
55.0 kg
