DIN PN160 Cast Steel Globe Regular Valve - 150 Size

Name: DIN PN160 Cast Steel Globe Regular Valve - 150 Size
Brand: World Wide Metric, Inc.
SKU: VAL-a5af9d
Price: 699.99 USD
Availability: OutOfStock

SKU:VAL-a5af9d

Durable DIN PN160 Cast Steel Globe Valve for high-pressure applications, meets ISO5752 standards.

$699.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The DIN PN160 Cast Steel Globe Regular Valve is a robust and durable valve designed for high-pressure applications. Featuring a Cast Steel body, Stellited disc, and Stainless Steel seat and stem, this valve ensures reliable performance and longevity. With precise engineering meeting ISO5752 standards, this valve is ideal for industrial settings requiring efficient fluid control. The flanged connection and Handwheel actuator make installation and operation seamless, catering to the needs of institutional buyers seeking quality and compliance.

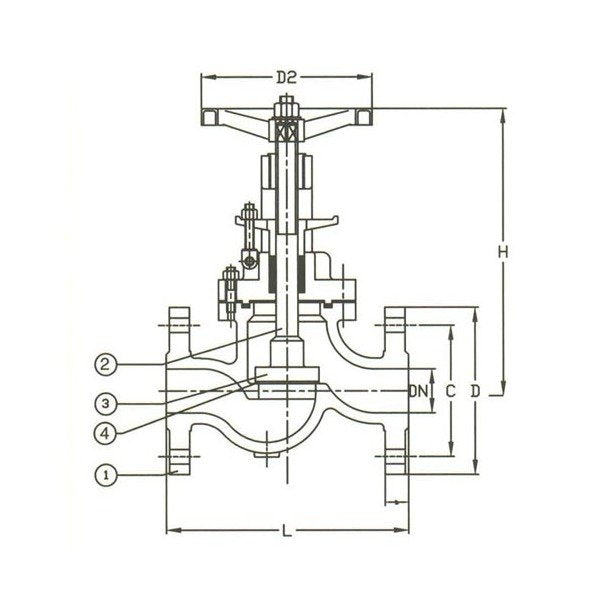

Product Specifications

Specifications Actuators

Handwheel

Specifications Body Material

Cast Steel

Specifications C

290 mm

Specifications Connection

Flanged Drilled

Specifications D

355 mm

Specifications D2

500 mm

Specifications Disc Material

Stellited

Specifications H

630 mm

Specifications Hydraulic Inspection Body

240

Specifications Hydraulic Inspection Seat

160

Specifications L

550 mm

Specifications Number Of Holes

Specifications Seat Material

Stainless Steel

Specifications Size

150

Specifications Stem Material

Stellite

Specifications T

50 mm

Specifications Weight

246 kg

DIN PN160 Cast Steel Globe Regular Valve - 150 Size
