DIN PN160 Cast Steel Globe SDNR Valve - Size 080
DIN PN160 Cast Steel Globe SDNR Valve - Size 080
SKU:VAL-0ea059
High-performance DIN PN160 Cast Steel Globe SDNR Valve for industrial fluid control.
Regular price
$599.99
Regular price
Sale price
$599.99
Unit price
per
Initiate Order
DIN PN160 Cast Steel Globe SDNR Valve - Size 080
$599.99
Quantity: 1
Claim Your Seller Account
DIN PN160 Cast Steel Globe SDNR Valve - Size 080
$599.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The DIN PN160 Cast Steel Globe SDNR Valve is a robust and reliable solution for industrial fluid control. Constructed with high-quality materials including Cast Steel body, Stellited seat, and disc, and Stainless Steel stem, this valve ensures long-lasting performance in demanding environments. With precise dimensions according to ISO5752 and DIN2501-PN160 flange compatibility, it offers seamless integration into existing systems. The handwheel actuator provides manual control, making it versatile for various applications. Trust in this valve for superior quality and exceptional functionality.

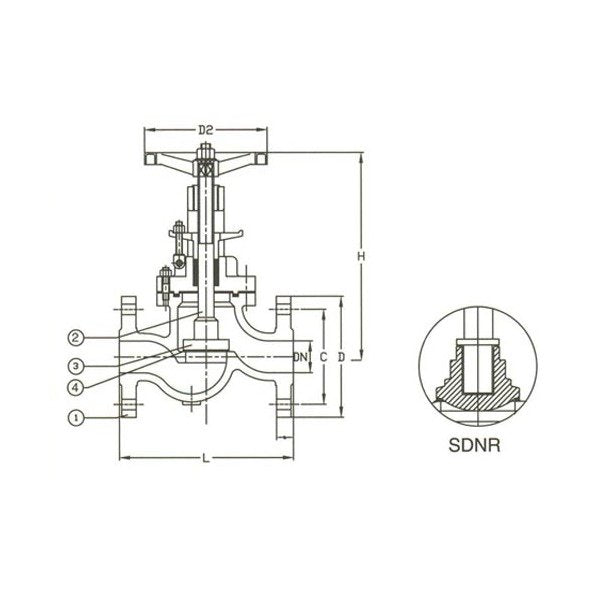

Product Specifications
Specifications Actuators
Handwheel
Specifications Body Material
Cast Steel
Specifications C
180 mm
Specifications Connection
Flanged Drilled
Specifications D
230 mm
Specifications D2
250 mm
Specifications Disc Material
Stellited
Specifications H
510 mm
Specifications Hydraulic Inspection Body
240
Specifications Hydraulic Inspection Seat
160
Specifications L
380 mm
Specifications Number Of Holes
8
Specifications Seat Material
Stellited
Specifications Size
080
Specifications Stem Material
Stainless Steel
Specifications T
36 mm
Specifications Weight
73 kg
