DIN PN160 Cast Steel Globe Valve
DIN PN160 Cast Steel Globe Valve
SKU:VAL-8d8a3e
High-pressure DIN PN160 Cast Steel Globe Valve for precise flow control in industrial settings.
Regular price
$299.99
Regular price
Sale price
$299.99
Unit price
per
Initiate Order
DIN PN160 Cast Steel Globe Valve
$299.99
Quantity: 1
Claim Your Seller Account
DIN PN160 Cast Steel Globe Valve
$299.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The DIN PN160 Cast Steel Globe SDNR Valve is designed for high-pressure applications, featuring a cast steel body, stellited seat, and disc, ensuring durability and reliability. The stainless steel stem enhances corrosion resistance, while the flanged connections allow for easy installation. With compliance to ISO5752 and DIN2501 standards, this valve offers precise control and long-lasting performance for industrial and institutional settings.

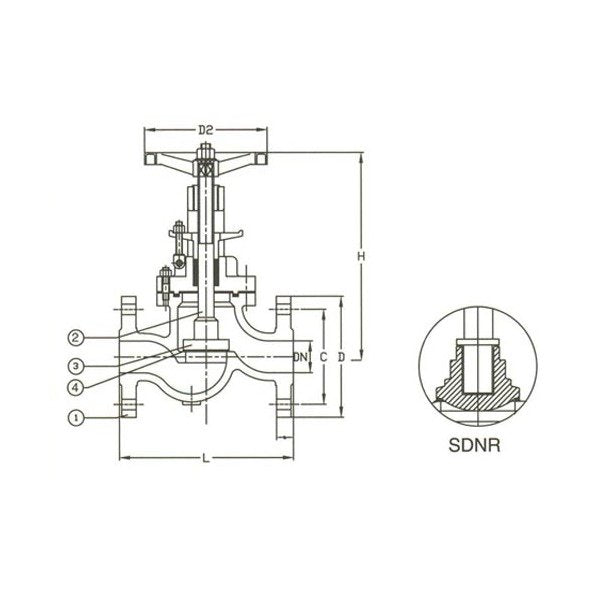

Product Specifications
Specifications Actuators
Handwheel
Specifications Body Material
Cast Steel
Specifications C
100 mm
Specifications Connection
Flanged Drilled
Specifications D
140 mm
Specifications D2
150 mm
Specifications Disc Material
Stellited
Specifications H
310 mm
Specifications Hydraulic Inspection Body
240
Specifications Hydraulic Inspection Seat
160
Specifications L
230 mm
Specifications Number Of Holes
4
Specifications Seat Material
Stellited
Specifications Size
025
Specifications Stem Material
Stainless Steel
Specifications T
24 mm
Specifications Weight
13.0 kg
