DIN PN40 Cast Steel Angle SDNR Valve
DIN PN40 Cast Steel Angle SDNR Valve
SKU:VAL-318e6f
High-performance DIN PN40 Cast Steel Angle SDNR Valve for industrial applications. Ensures durability, precision, and compatibility.
Regular price
$349.99
Regular price
Sale price
$349.99
Unit price
per
Initiate Order
DIN PN40 Cast Steel Angle SDNR Valve
$349.99
Quantity: 1
Claim Your Seller Account
DIN PN40 Cast Steel Angle SDNR Valve
$349.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The DIN PN40 Cast Steel Angle SDNR Valve offers superior durability and performance for industrial applications. Constructed with GSC-25N2 cast steel body, stainless steel stem, disc, and seat, this valve ensures reliable operation under high pressure. Compliant with ISO5752 Series 8 face-to-center standards and DIN2501-PN40 flange requirements, it guarantees precision and compatibility. The handwheel actuator provides easy manual control, making it ideal for various fluid handling systems in industrial settings.

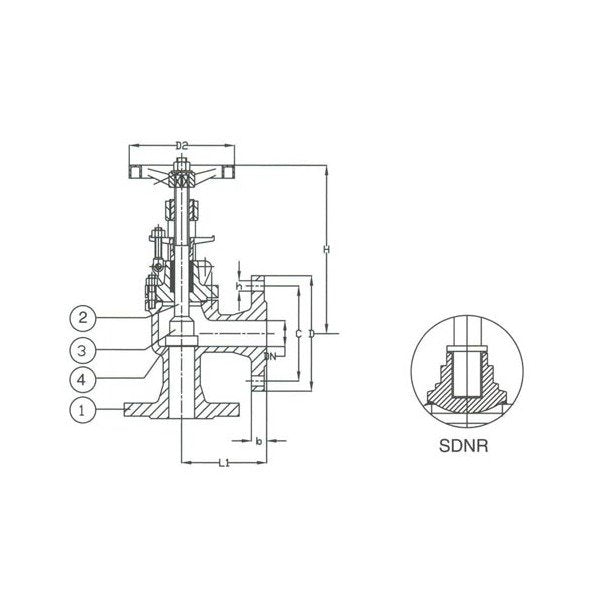

Product Specifications
Specifications Actuators
Handwheel
Specifications Body Material
Cast Steel
Specifications C
145 mm
Specifications Connection
Flanged Drilled
Specifications D
185 mm
Specifications D2
200 mm
Specifications Disc Material
Stainless Steel
Specifications H
260 mm
Specifications Hydraulic Inspection Body
60
Specifications Hydraulic Inspection Seat
40
Specifications L1
145 mm
Specifications Number Of Holes
8
Specifications Seat Material
Stainless Steel
Specifications Size
065
Specifications Stem Material
Stainless Steel
Specifications T
22 mm
Specifications Weight
24.0 kg
