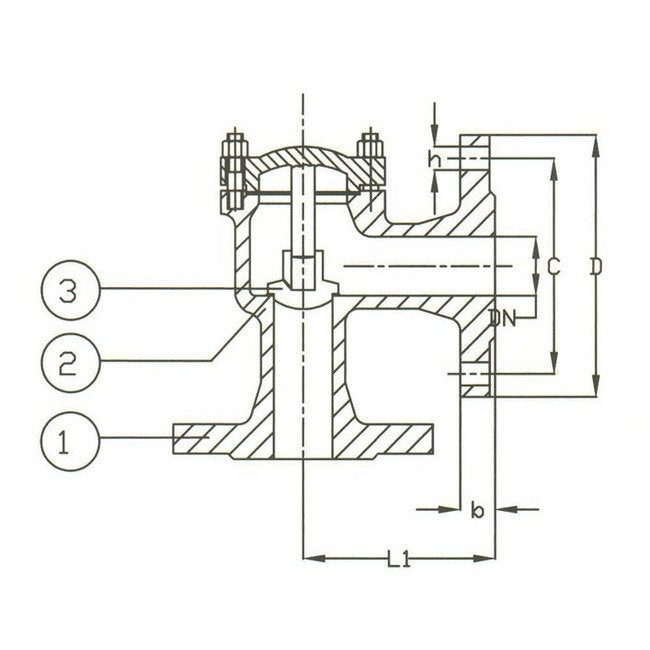

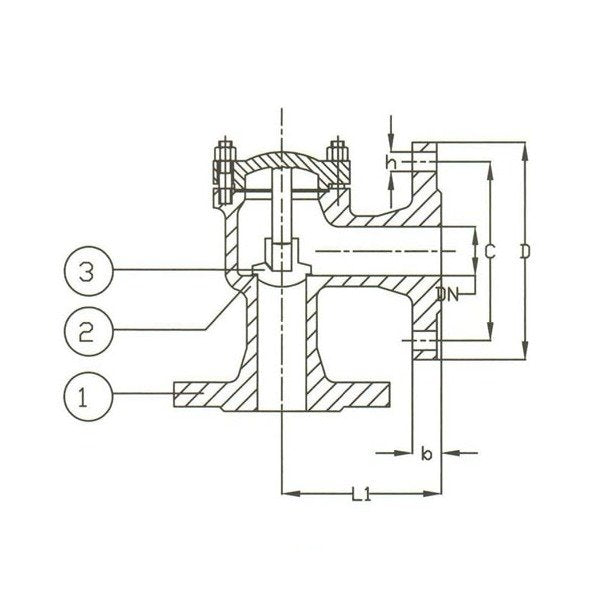

The DIN PN40 Cast Steel Lift Check Angle Valve is designed for reliable performance in industrial applications. Crafted with a robust cast steel body and stainless steel components, including the disc, seat, and stem, this valve ensures durability and corrosion resistance. Compliant with DIN standards, it features precise face to face and face to center dimensions per DIN 3202-F1 and F8 respectively. Ideal for hydraulic systems, this valve offers easy installation with flanged connections according to DIN2501-PN40.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Specifications Actuators
Handwheel
Specifications Body Material
Cast Steel
Specifications C
160 mm
Specifications Connection
Flanged Drilled
Specifications D
200 mm
Specifications Disc Material
Stainless Steel
Specifications H
18 mm
Specifications Hydraulic Inspection Body
60
Specifications Hydraulic Inspection Seat
40
Specifications L1
155 mm
Specifications Number Of Holes
8
Specifications Seat Material
Stainless Steel
Specifications Size
080
Specifications Stem Material
Stainless Steel
Specifications T
24 in
Specifications Weight
29.00 kg
