DIN PN40 Cast Steel Lift Check Angle Valve
DIN PN40 Cast Steel Lift Check Angle Valve
SKU:VAL-da7205
Durable DIN PN40 Cast Steel Lift Check Angle Valve for high-pressure applications, ensuring reliability and compliance with industry standards.
Regular price
$899.99
Regular price
Sale price
$899.99
Unit price
per
Initiate Order
DIN PN40 Cast Steel Lift Check Angle Valve
$899.99
Quantity: 1
Claim Your Seller Account
DIN PN40 Cast Steel Lift Check Angle Valve
$899.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The DIN PN40 Cast Steel Lift Check Angle Valve is a robust solution designed for high-pressure applications. Constructed with a cast steel body and stainless steel components including the disc, seat, and stem, this valve ensures durability and reliable performance. Meeting industry standards such as DIN 3202-F1 for face to face dimensions and DIN 2501-PN40 for flanges, it offers seamless integration into existing systems. With a size of 200mm and a weight of 188kg, it provides secure hydraulic inspections and precise control, making it ideal for institutional and industrial use.
Ready to Grow Without Cash Flow Constraints?

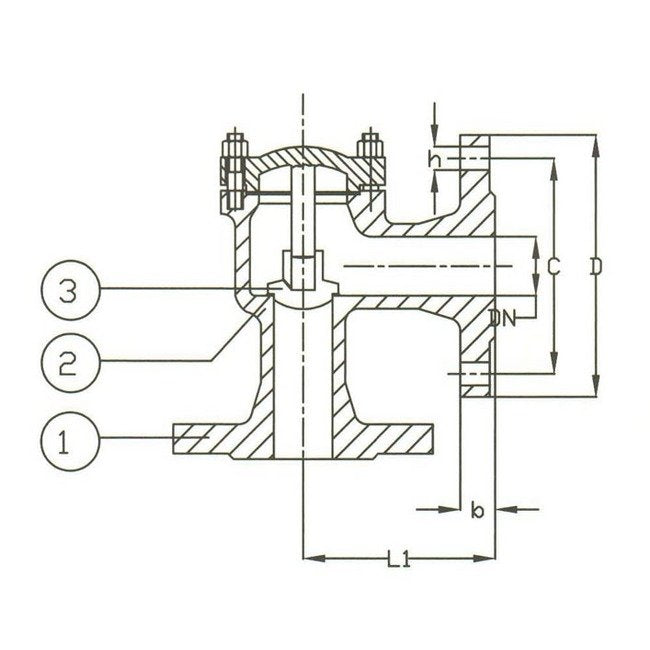

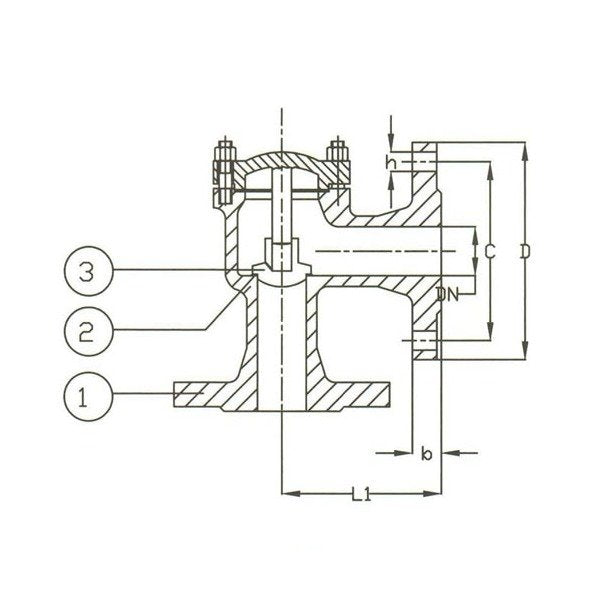

Product Specifications
Specifications Actuators
Handwheel
Specifications Body Material
Cast Steel
Specifications C
320 mm
Specifications Connection
Flanged Drilled
Specifications D
375 mm
Specifications Disc Material
Stainless Steel
Specifications H
30 mm
Specifications Hydraulic Inspection Body
60
Specifications Hydraulic Inspection Seat
40
Specifications L1
275 mm
Specifications Number Of Holes
12
Specifications Seat Material
Stainless Steel
Specifications Size
200
Specifications Stem Material
Stainless Steel
Specifications T
34 in
Specifications Weight
188 kg
