DIN PN40 Cast Steel Lift Check Angle Valve
DIN PN40 Cast Steel Lift Check Angle Valve
SKU:VAL-3cb60b
High-performance DIN PN40 Cast Steel Lift Check Angle Valve for reliable industrial use.
Regular price
$399.99
Regular price
Sale price
$399.99
Unit price
per
Initiate Order
DIN PN40 Cast Steel Lift Check Angle Valve
$399.99
Quantity: 1
Claim Your Seller Account
DIN PN40 Cast Steel Lift Check Angle Valve
$399.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

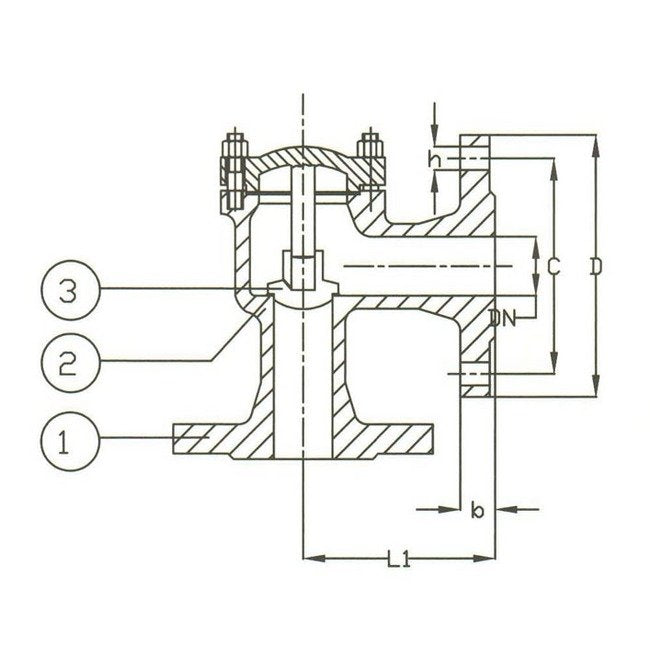

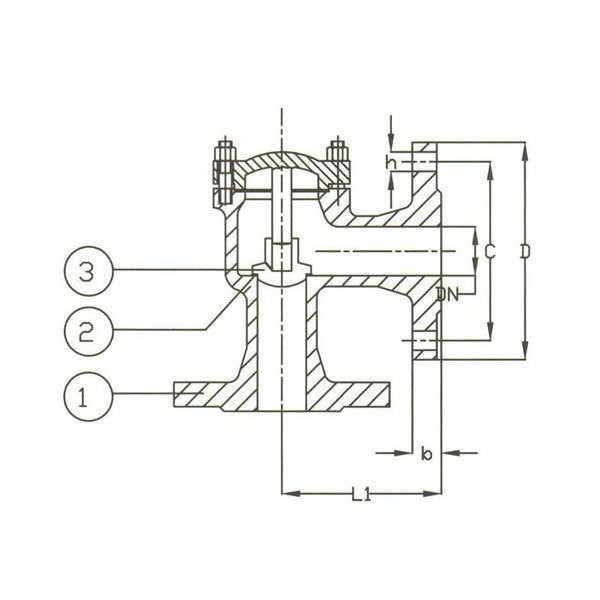

The DIN PN40 Cast Steel Lift Check Angle Valve is crafted with precision using high-quality materials, featuring a Cast Steel body with GSC-25N2, Stainless Steel disc and seat (AISI 410), and Flanges according to DIN2501-PN40 standards. Its Face to Face and Face to Center dimensions adhere to DIN 3202, ensuring seamless integration into institutional systems. With a 100mm size, 175mm L1, and 43kg weight, this valve offers reliability and longevity, making it an ideal choice for critical applications.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Specifications Actuators
Handwheel
Specifications Body Material
Cast Steel
Specifications C
190 mm
Specifications Connection
Flanged Drilled
Specifications D
235 mm
Specifications Disc Material
Stainless Steel
Specifications H
22 mm
Specifications Hydraulic Inspection Body
60
Specifications Hydraulic Inspection Seat
40
Specifications L1
175 mm
Specifications Number Of Holes
8
Specifications Seat Material
Stainless Steel
Specifications Size
100
Specifications Stem Material
Stainless Steel
Specifications T
24 in
Specifications Weight
43 kg
