DIN PN40 Cast Steel Lift Check Globe Valve
$129.99
Quantity: 1
Claim Your Seller Account
DIN PN40 Cast Steel Lift Check Globe Valve
$129.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

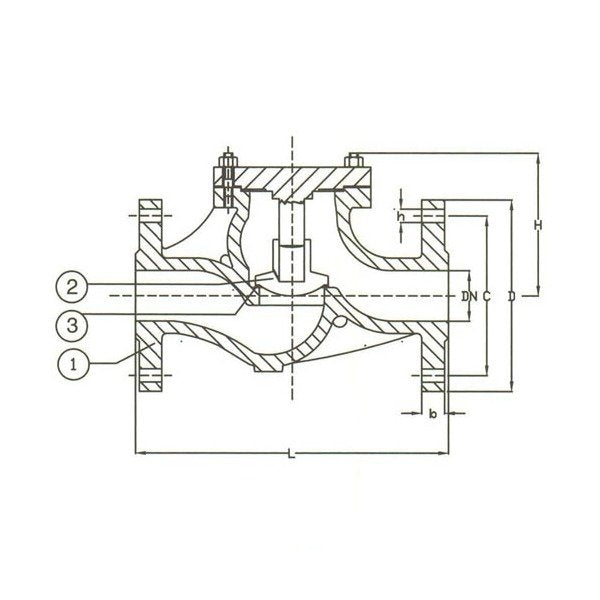

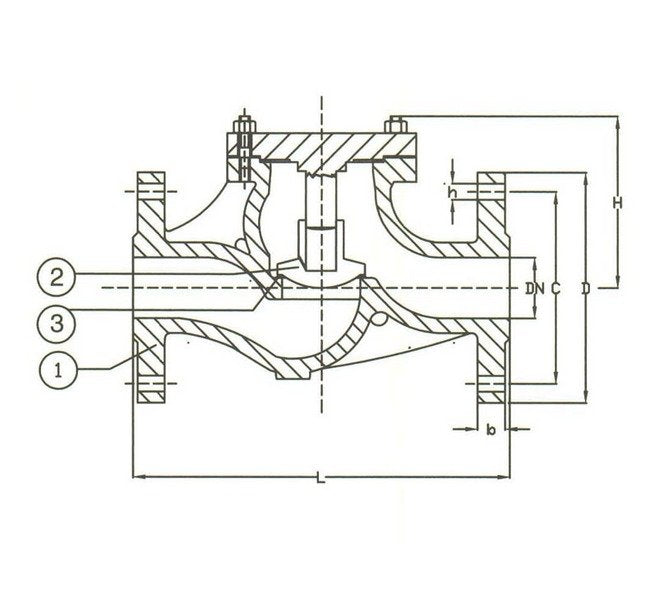

The DIN PN40 Cast Steel Lift Check Globe Valve is a reliable solution for industrial fluid control. Constructed with Cast Steel body and Stainless Steel seat, disc, and stem, this valve ensures durability and optimal performance. Compliant with DIN standards, it features precise dimensions according to DIN 3202-F1/F8 and DIN2501-PN40 flanges. With a Handwheel actuator and Flanged Drilled connection, this valve offers ease of operation and installation, making it ideal for both consumer and institutional applications.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Specifications Actuators
Handwheel
Specifications Body Material
Cast Steel
Specifications C
65 mm
Specifications Connection
Flanged Drilled
Specifications D
95 mm
Specifications Disc Material
Stainless Steel
Specifications H
75 mm
Specifications Hydraulic Inspection Body
60
Specifications Hydraulic Inspection Seat
40
Specifications L
130 mm
Specifications Number Of Holes
4
Specifications Seat Material
Stainless Steel
Specifications Size
015
Specifications Stem Material
Stainless Steel
Specifications T
16 in
Specifications Weight
3.00 kg
