DIN PN40 Cast Steel Lift Check Globe Valve
DIN PN40 Cast Steel Lift Check Globe Valve
SKU:VAL-a1c174
Durable DIN PN40 Cast Steel Lift Check Globe Valve, compliant with DIN standards for industrial reliability.
Regular price
$499.99
Regular price
Sale price
$499.99
Unit price
per
Initiate Order
DIN PN40 Cast Steel Lift Check Globe Valve
$499.99
Quantity: 1
Claim Your Seller Account
DIN PN40 Cast Steel Lift Check Globe Valve
$499.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

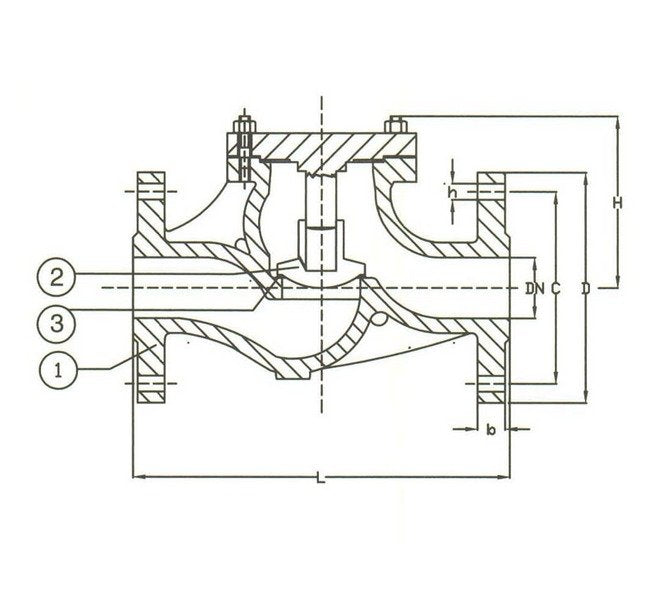

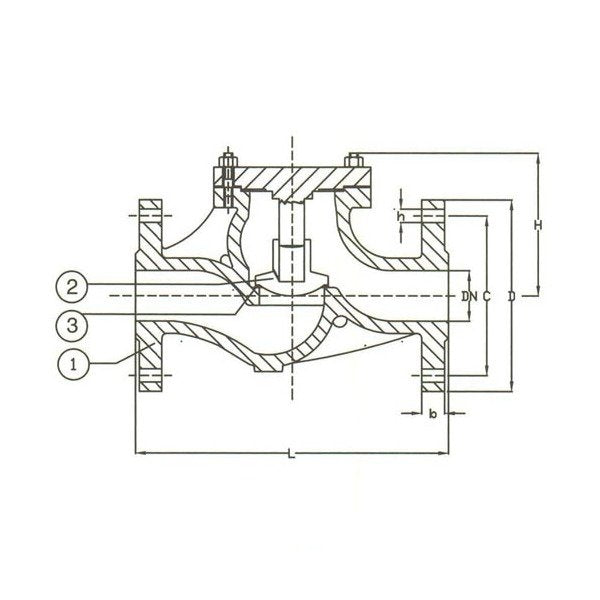

The DIN PN40 Cast Steel Lift Check Globe Valve is crafted for durability and performance. Constructed with a Cast Steel body, Stainless Steel disc, and seat, this valve ensures reliable operation in high-pressure environments. Compliant with DIN standards, featuring precise dimensions according to DIN 3202-F1 and DIN 3202-F8, with flanges meeting DIN2501-PN40 requirements. The valve's robust build, along with precise hydraulic inspections and handwheel actuators, makes it ideal for industrial applications demanding exceptional quality and adherence to standards.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Specifications Actuators
Handwheel
Specifications Body Material
Cast Steel
Specifications C
190 mm
Specifications Connection
Flanged Drilled
Specifications D
235 mm
Specifications Disc Material
Stainless Steel
Specifications H
155 mm
Specifications Hydraulic Inspection Body
60
Specifications Hydraulic Inspection Seat
40
Specifications L
350 mm
Specifications Number Of Holes
8
Specifications Seat Material
Stainless Steel
Specifications Size
100
Specifications Stem Material
Stainless Steel
Specifications T
24 in
Specifications Weight
43 kg
