DIN PN40 Cast Steel Lift Check Globe Valve
DIN PN40 Cast Steel Lift Check Globe Valve
SKU:VAL-4ea721
Durable DIN PN40 Cast Steel Valve with Stainless Steel components for reliable hydraulic performance.
Regular price
$399.99
Regular price
Sale price
$399.99
Unit price
per
Initiate Order
DIN PN40 Cast Steel Lift Check Globe Valve
$399.99
Quantity: 1
Claim Your Seller Account
DIN PN40 Cast Steel Lift Check Globe Valve
$399.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

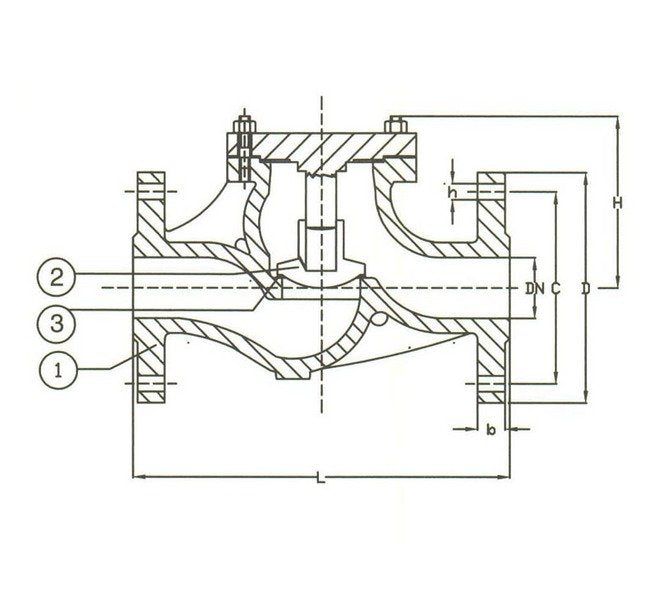

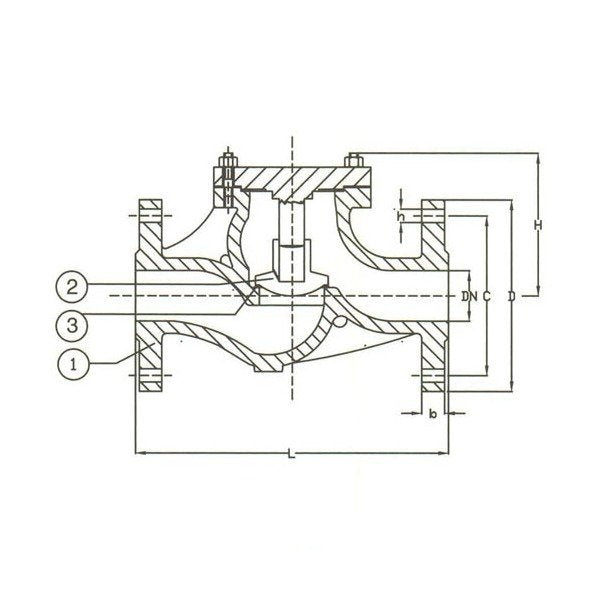

The DIN PN40 Cast Steel Lift Check Globe Valve is built with a robust Cast Steel body (GSC-25N2) and features a Stainless Steel AISI 410 disc and seat. Compliant with DIN standards, this valve ensures reliable performance in hydraulic applications. With a Face to Face according to DIN 3202-F1 and Flanges according to DIN2501-PN40, it offers durability and secure connections. The Handwheel actuators provide manual control, making it versatile for various industrial settings.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Specifications Actuators
Handwheel
Specifications Body Material
Cast Steel
Specifications C
160 mm
Specifications Connection
Flanged Drilled
Specifications D
200 mm
Specifications Disc Material
Stainless Steel
Specifications H
130 mm
Specifications Hydraulic Inspection Body
60
Specifications Hydraulic Inspection Seat
40
Specifications L
310 mm
Specifications Number Of Holes
8
Specifications Seat Material
Stainless Steel
Specifications Size
080
Specifications Stem Material
Stainless Steel
Specifications T
24 in
Specifications Weight
29.00 kg
