DIN PN40 Cast Steel Lift Check Valve
DIN PN40 Cast Steel Lift Check Valve
SKU:VAL-0db366
Premium DIN PN40 Cast Steel Valve for industrial reliability & performance. Compliant with DIN standards.
Regular price
$349.99
Regular price
Sale price
$349.99
Unit price
per
Initiate Order
DIN PN40 Cast Steel Lift Check Valve
$349.99
Quantity: 1
Claim Your Seller Account
DIN PN40 Cast Steel Lift Check Valve
$349.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

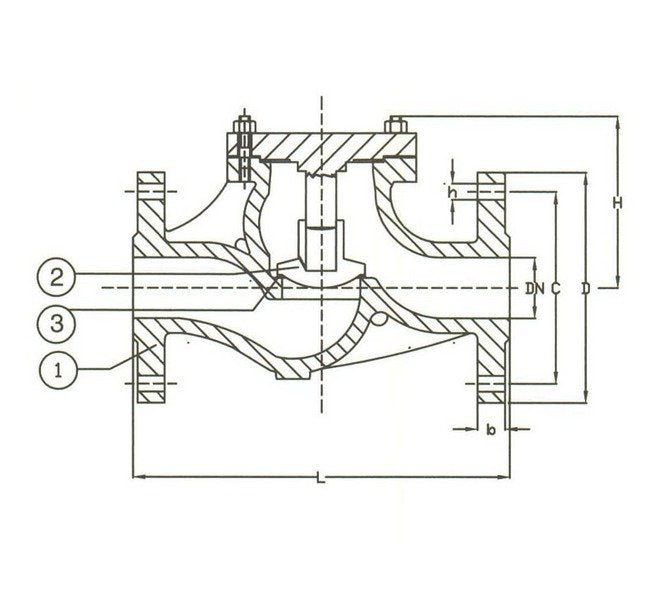

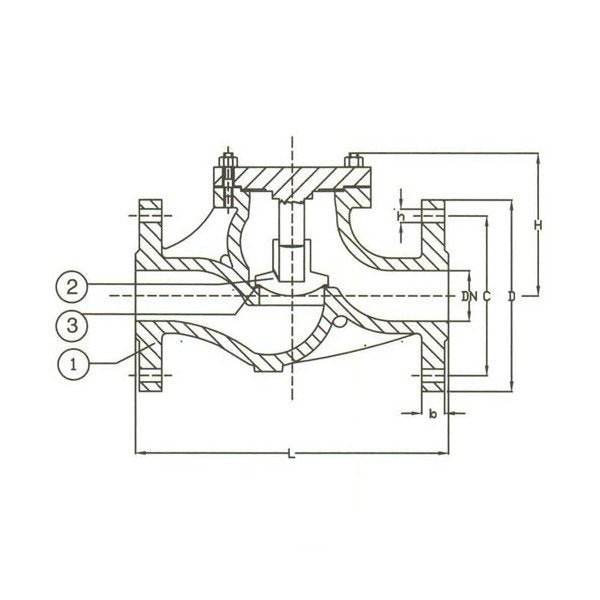

The DIN PN40 Cast Steel Lift Check Globe Pattern Valve is meticulously engineered for optimal performance and durability in industrial settings. Constructed with a Cast Steel body, Stainless Steel disc, and seat materials, this valve ensures reliable operation under high pressures and temperatures. Compliant with DIN standards, it features precise Face to Face and Center dimensions according to DIN 3202, with Flanges meeting DIN2501-PN40 requirements. The handwheel actuator allows for manual operation, making it versatile for various applications.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Specifications Actuators
Handwheel
Specifications Body Material
Cast Steel
Specifications C
125 mm
Specifications Connection
Flanged Drilled
Specifications D
165 mm
Specifications Disc Material
Stainless Steel
Specifications H
95 mm
Specifications Hydraulic Inspection Body
60
Specifications Hydraulic Inspection Seat
40
Specifications L
230 mm
Specifications Number Of Holes
4
Specifications Seat Material
Stainless Steel
Specifications Size
050
Specifications Stem Material
Stainless Steel
Specifications T
20 in
Specifications Weight
13.0 kg
