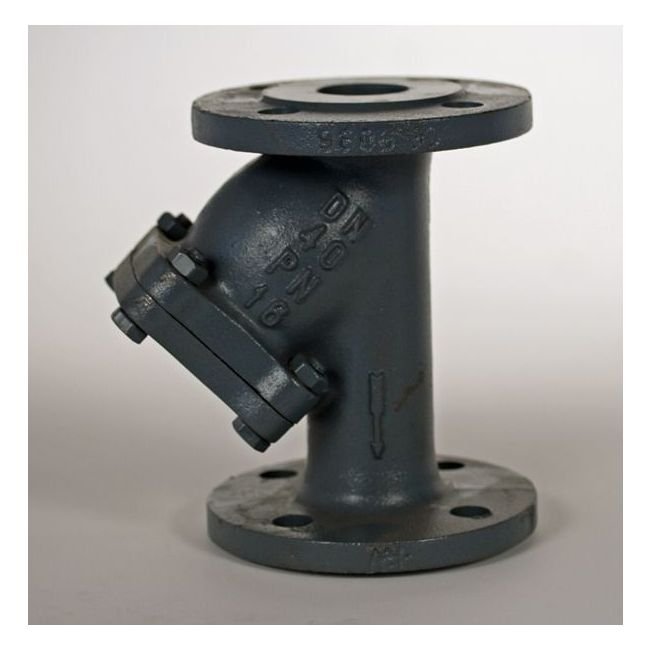

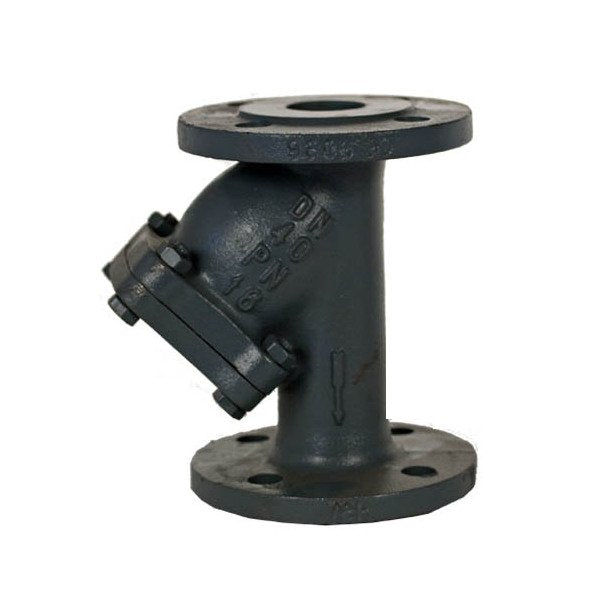

The PN 40 Y-Strainer, Cast Steel is designed for high-performance filtration in industrial settings. Constructed with a durable cast steel body and AISI 304 stainless steel strainer, it ensures reliable operation. Compliant with DIN standards, featuring a face to face dimension according to DIN 3202-F1 and flanges meeting DIN2501-PN16 requirements, this strainer guarantees seamless compatibility and efficient filtration. With a compact design and robust construction, this Y-strainer is ideal for applications demanding precision and durability.

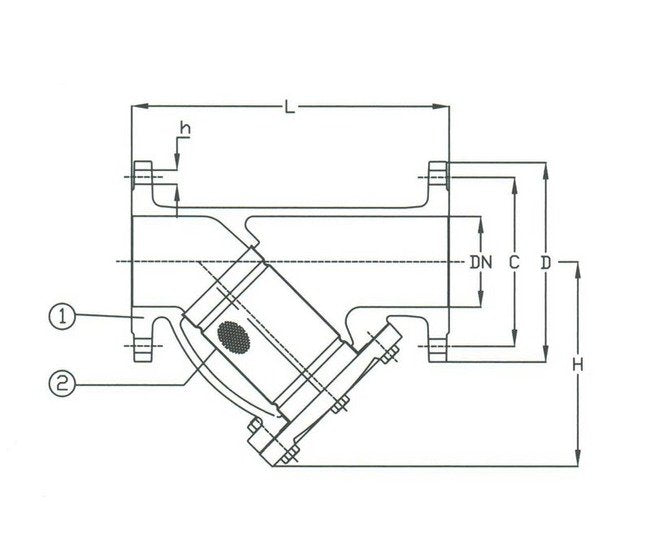

Product Specifications
Specifications Body Material
Cast Steel
Specifications C
85 mm
Specifications Connection
Flanged Drilled
Specifications D
115 mm
Specifications H
90 mm
Specifications Hydraulic Inspection Body
64
Specifications Hydraulic Inspection Seat
40
Specifications L
160 mm
Specifications Number Of Holes
4
Specifications Size
025
Specifications T
18 mm
Specifications Weight
6 kg
