DIN PN40 Stainless Steel Slip-On Flange

Name: DIN PN40 Stainless Steel Slip-On Flange
Brand: World Wide Metric, Inc.
SKU: FLA-b2500c
Price: 299.99 USD
Availability: OutOfStock

SKU:FLA-b2500c

High-quality DIN PN40 Slip-On Flange for industrial applications, sized 350 - 14" with PN 40 pressure rating.

$299.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

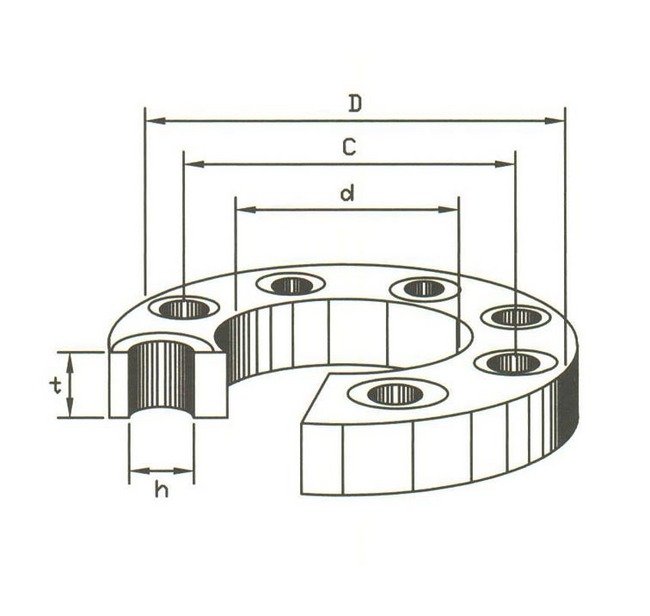

The DIN PN40 Stainless Steel Slip-On Flange is designed to meet the demanding requirements of industrial applications. With a size range of 350 - 14", pressure rating of PN 40, and made from high-quality stainless steel, this flange ensures durability and reliable performance. Its precise dimensions, including d: 359.7 mm, D: 580 mm, C: 510 mm, make it ideal for secure connections. Featuring 16 bolts for enhanced stability, a compact h: 36 mm profile, t: 38 mm thickness, and a weight of 36.20 kg, this flange offers both strength and convenience.

Product Specifications

Specifications C

510 mm

Specifications D

580 mm

Specifications H

36 mm

Specifications Material

Stainless Steel

Specifications Number Of Bolts

Specifications Pressure

PN 40

Specifications Size

350 - 14"

Specifications T

38 mm

Specifications Weight

36.20 kg

DIN PN40 Stainless Steel Slip-On Flange
