DIN PN40 Steel Blind Flange - 150mm (6")

Name: DIN PN40 Steel Blind Flange - 150mm (6")
Brand: World Wide Metric, Inc.
SKU: FLA-e2b9f2
Price: 89.99 USD
Availability: OutOfStock

SKU:FLA-e2b9f2

High-quality DIN PN40 Steel Blind Flange for reliable high-pressure piping, PN 40, Carbon Steel material, size 150mm (6").

$89.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The DIN PN40 Steel Blind Flange is designed for high-pressure piping systems, featuring precise dimensions and sturdy Carbon Steel construction. With a pressure rating of PN 40, d=168.3 mm, D=300 mm, and weighing 14.90 kg, this blind flange ensures reliable sealing and structural integrity. Compliant with industry standards, it is ideal for institutional applications requiring durability and performance.

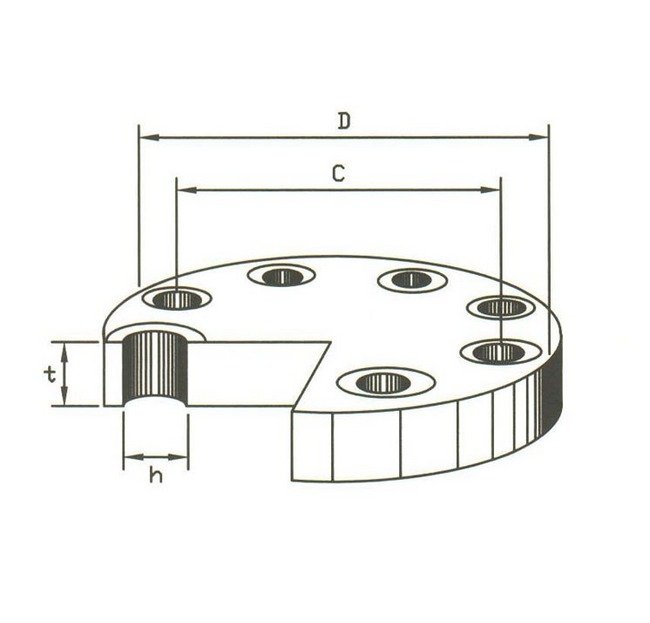

Product Specifications

Specifications C

250 mm

Specifications D

300 mm

Specifications H

26 mm

Specifications Material

Carbon Steel

Specifications Number Of Bolts

Specifications Pressure

PN 40

Specifications Size

150 - 6"

Specifications T

28 mm

Specifications Weight

14.90 kg
